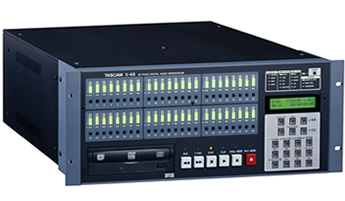

X-48은 48 트랙 하드 디스크 레코더와 48 채널 / 48버스 (24스테레오) / 6 AUX / 1 스테레오 마스터의 디지털 믹서가 통합된 standalone의 48 트랙 디지털 오디오 워크스테이션입니다.
96kHz의 샘플링 주파수로 동작하더라도 변하지 않는 퍼포먼스를 발휘하며 라이브 레코딩으로부터 포스트프로덕션까지 대응하는 신시대의 디지털 오디오 워크스테이션입니다.

48 트랙 디지털 오디오 워크스테이션

하드 디스크 멀티트랙 레코더
48 트랙 하드 디스크 레코더

본체에 트랜스포트 키나 미터를 장비해 본체 조작에 의한 MTR 컨트롤이 가능

80GB HDD 내장

FireWire 외장 HDD에 녹음 가능

(USB Flash Memory Drive를 지원하며 외장 DVD, CDR, CDR/W 는 지원하지 않습니다.)

내장 HDD 디스크 포맷：NTFS

음성 파일 포맷：WAVE

standalone 동작, 타임 코드 동기, 씨어터 플레이(*1)의 각 동작 모드

GUI를 이용한 트랙 편집(CUT, COPY, PASTE, UNDO/REDO)

200 레벨의 UNDO 및 Edit History List에 의한 UNDO가 가능

비리얼타임의 타임컴프레션 편집이 가능

샘플링 주파수：44.1k/48k/88.2k/96kHz

±6 피치컨트롤 재생

타임 코드 동기 대응 (LTC)

LTC 타임 코드 동기는 Pull-up/Pull-down 레이트에 대응

타임 코드 동기에 있어 비디오 프레임 엣지에 동기 시키는 비디오 리절브 대응

디지털 믹서
48 채널 / 48버스 (24스테레오) / 6 AUX / 1 스테레오 마스터의 디지털 믹서

디지털 믹서는 Playback시의 믹스 다운 믹서로서 사용 가능

각 인풋 및 버스에, 다이내믹스, 4 밴드 EQ 및 6 AUX SEND를 탑재

일반
외부 디스플레이 모니터, 키보드, 마우스를 연결한 그래피컬 유저 인터페이스(GUI)에 의한 직관적인 조작

6 계통의 TDIF 디지털 입출력(48 입출력, FS 96 kHz 대응)

2기의 24 채널 오디오 입출력 옵션 카드 슬롯(아날로그, AES/EBU, ADAT)

1 계통의 COAXIAL 스테레오 디지털 입출력(S/PDIF)

클럭 소스：Internal, WORD, S/PDIF, TDIF, SLOT 1, SLOT 2

WORD SYNC IN/OUT/THRU

WORD SYNC IN는 하이 샘플링 주파수 클럭과 베이스 클럭(노멀 샘플링 주파수)에 대응

VIDEO IN/THRU(비디오 리절브, NTSC/PAL BB 및 HDTV 3치 1080 p)

TRS 밸런스 LTC 입출력

MIDI IN, MIDI OUT

RS-422 9 핀에 의한 머신 컨트롤이 가능

오디오 데이터 및 EDL 데이터의 임포트/export

백업용 DVD 멀티 드라이브 탑재

IEEE1394(FireWire) 단자 또는 USB 단자에 외부 HDD를 접속하여 녹음 및 프로젝트의 카피가 가능

Ethernet 경유로 호스트 컴퓨터와의 데이터 전송(1000 BASE-TX대응)

씨어터 플레이(*1) 플레이 트리거용 풋 스윗치 단자

4U랙 마운트 사이즈

*1) 씨어터 플레이
재생을 하고 싶은 구간의 Start Point와 End Point를 Marker로 등록하여 복수의 Marker를 차례차례 재생하는 플레이 모드. 씨어터 플레이를 실시하면 최초의 Marker의 출발점으로부터 재생이 시작되어 엔드 포인트에 도달하면 재생이 자동적으로 정지합니다.여기서 다음의 Marker의 출발점으로 대기합니다.

TASCAM's new X-48 is the world's first standalone 48-track Hybrid Hard Disk Workstation. Co-Developed with SaneWave, it integrates the best of both worlds: the stability and ease-of-use of a purpose-built hard disk recorder, with the GUI, editing features and plug-in compatibility of a computer-based digital audio workstation.

It boasts up to 96kHz/24-bit recording across all 48 tracks. Its file compatibility and synchronization surpass even the TEC Award-winning MX-2424, with native Broadcast WAVE audio file support and AAF export for compatibility with workstations like Pro Tools®, Nuendo and Logic. Support for FireWire hard drives and Gigabit Ethernet allows simple transfer between systems, making it the ultimate multitrack solution for high-quality music, post and live recording applications.

Yet the X-48 goes beyond mere standalone recorders -- its built-in, automated 48-channel digital mixer, VGA display output, powerful editing functions and DVD+RW backup drive transform it into a complete integrated workstation.

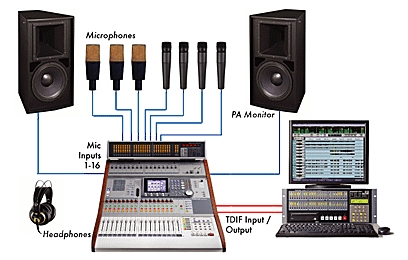

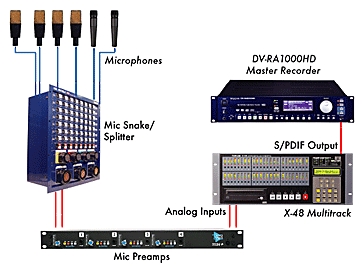

Live Recording

The portability of the X-48 makes it a natural choice for live event and house of worship recording. Its dedicated design gives you extra reliability for those occasions when there aren't any second takes.

The optional IF-AN24X analog input card offers 24 high-quality balanced analog inputs, and you can use two cards for 48-track/96kHz recording. AES/EBU and ADAT digital I/O cards are also available, and both the analog and digital I/O can be used simultaneously for monitoring.

The rear panel contains a FireWire connection for connecting more hard drives for extra storage. Since the X-48 records Broadcast WAVE files, these recordings can immediately be brought into your favorite DAW for editing and mixing, or you can complete the project "inside the box" with the mixer built into the X-48. It also offers 60-channel automated mixing with powerful processing features, allowing you to monitor the show without an external mixer, and/or output a stereo mix to a CD or DVD recorder like our DV-RA1000HD.

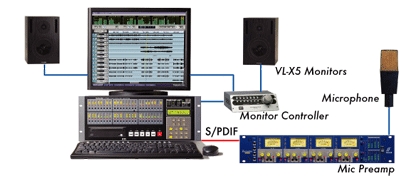

Music Tracking

Working with the X-48 gives you the feel of recording to a purpose-built recorder, instead of an adapted computer workstation, for solid, reliable performance. With all of its synchronization and control options - like 9-pin control, MIDI control and SMPTE sync - it easily integrates with the rest of the equipment in your studio. When you just want to capture the music, not get bogged down in editing and setup, the X-48 helps you keep the session moving quickly to keep your artists creative.

The X-48 handles 48 tracks of simultaneous 96kHz recording and it keeps up with every punch-in, no matter how fast. Its great-sounding analog converters and inexpensive DVD backup media make it the perfect replacement for aging 24-track recorders. You can record to its built-in 80GB hard drive or to FireWire drives for removable storage.

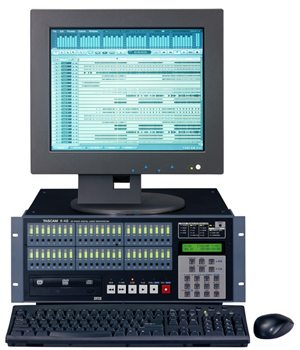

Once you've captured the performance, you can assemble the perfect take using its built-in editing interface. Just plug in a mouse, keyboard and VGA monitor to start editing, looping, or crossfading between takes. If you prefer working in another format, export your session as an AAF file to a workstation like Pro Tools®. Audio tracks on the X-48 are also recorded as standard time-stamped Broadcast WAVE files that can be imported into any workstation software, and you can even work in "tape mode," which creates one audio file per track to make file management between systems easy.

Live Presentation Playback

The X-48 excels as a playback machine for theater, live performance and presentation applications. Its Theatre Mode function allows you to play one audio selection at a time, automatically cueing up the next section for instant playback. Designed for theaters playing back sound effects and music selections, Theatre Mode also offers hundreds of creative possibilities for multimedia producers. Whether the project originates on the X-48 or is imported from a DAW like Pro Tools, cueing the next scene is as simple and reliable as tapping a footswitch.

Synchronization features like SMPTE, MIDI and RS-422 enable the X-48 to integrate with multimedia installations. Its 48 tracks of playback easily allow multi-channel surround mixes to be reproduced with astonishing clarity. Integrated editing, mixing and project management allow the engineer to control an entire production from their fingertips.

Project Studio ecording

From the Portastudio to high-end professional solutions, TASCAM is well-known for innovative, all-in-one production workstations integrating recording and mixing in one box. The X-48 allows a small studio to combine 48-track, 96kHz/24-bit recording with powerful automated mixing for results never before possible at this price point.

The editing screen of the X-48 uses a familiar DAW interface, with snap-to-grid editing, crossfade and plug-in features professionals demand. The internal mixer is a 60-input digital system with 32-bit floating-point resolution. Each channel provides 4-band parametric EQ, dynamics processing and four VST plug-in insert slots. Best of all, the X-48 is configured out of the box for pro audio recording. There's nothing to install or troubleshoot - just plug it in, turn it on and press
