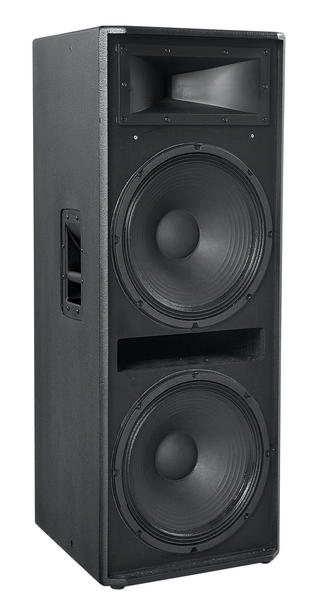

Proel has developed the SMART V-PLUS series to meet the requirements of those who require reliable, good performance products in an affordable, good value price range. The trapezoidal cabinet is made with reinforced 15mm beech plywood with a resistant anti-scratch paint finish and several M10 flying points. The SMART PLUS is made of internally reinforced, low resonance wood composite and covered with high quality Class 1 fire resistant carpet. Both series feature a robust protective metal grille, a comfortable ergonomic handle, resistant rubber feet and a die-cast aluminium ¡®top hat' ? ange for stand mounting. The passive subwoofers of the SMART V-PLUS series are equipped with a 160Hz high pass filter, which when connected to a mid / high satellite allow the simple creation of a 3 way system. The active subwoofers feature a electronic stereo crossover allowing any subwoofer-satellite combination. The SMART V-PLUS series offers a wide choice of systems for both musical and installation applications. The active versions of the SMART V-PLUS series feature dynamic Class H amplifiers, which are both reliable and powerful with reduced weight and dimensions.


Datasheet
System type :
quasi 3-way active loudspeaker
Amplifier Continuous Power :
300 W + 100 W bi-amp
Frequency response :
45 Hz - 20 kHz
Maximum (peak) Output :
128 dB @ 1m
Low Frequency Device :
2 x 15'' woofer
High Frequency Device :
1'' compression driver - 1.7'' voice coil
Crossover Frequency :
1600 Hz
Angolar coverage :
90¡Æ H x 40¡Æ V
Trapezoidal taper :
10¡Æ
Power Supply :
230 VAC 50 Hz or 117 VAC
Maximum Power Consumption :
480 VA
Connectors :
IN: combo, XLR F
LINK: XLR M
Construction :
15 mm beech plywood
Finishing :
anti scratch coating
Cabinet Colour :
black
Mounting Pole :
1 x bottom
Flying System :
2 x M10 - top
Weight :
30.5 kg (67.252 lb)
Dimensions (W x H x D) :
44 x 114 x 52.5 cm
Controls :
volume, gnd. lift
