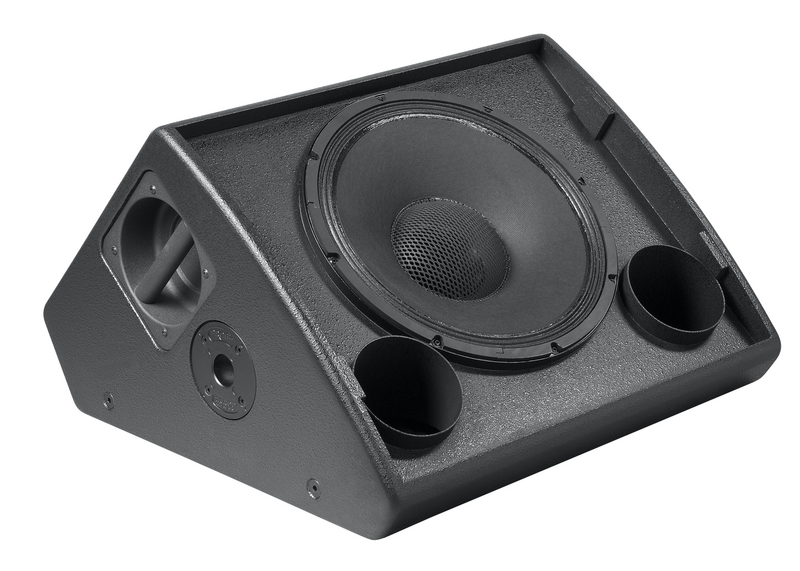

The monitor EDGE15CXPB is a highly efficient 2 way low profile system. The bass frequencies are reproduced by a high excursion 15'' woofer with a 4'' voice coil. The woofer is equipped with a copper ring on the pole piece to achieve the lowest distortion in the critical vocal range. A small spherical wave guide, housed coaxially in the magnet assembly, loads a 1.5'' neodymium-magnet, titanium-diaphragm compression driver that delivers a 65¡Æ symmetric coverage for 1.4kHz upwards.
The EDGE15CXPB monitor system is equipped with a high-performance, high-quality, passive filter. The EDGE15CXPB can be internally switched to Bi-Amp operation and driven by the DSO26 digital processor using the appropriate memory program.
The extremely high performance coaxial transducer results in even tonal balance and high intelligibility even at extremely high power levels. Moreover, its shallow and compact shape gives it a discrete presence on stage, particularly for T.V. broadcast performances. EDGE15CXPB can be also be utilised as a reinforcement system for the front-fill or down fill as well as being stand mounted with for example, the EDGE121SP, to create a drum-fill.

Datasheet
System type :
Coaxial 2-way vented enclosure
Nominal Impedance :
8 ohm
Input power rating (AES) :
900 W
Input power rating (program) :
1800 W
Frequency response :
60 Hz - 20 kHz (-6dB,+6dB)
Sensitivity :
99 dB SPL ( 2.83V @ 1m )
Maximum (peak) Output :
131 dB @ 1m
Low Frequency Device :
15'' woofer - 4'' voice coil
LF Nominal impedance :
8 ohm
LF Sensitivity :
99 dB SPL ( 2.83V @ 1m )
LF Power rating (AES) :
900 W
LF Power rating (program) :
1800 W
High Frequency Device :
1.5'' compression driver - coaxial
HF Nominal impedance :
8 ohm
HF Sensitivity :
109 dB SPL ( 2.83V @ 1m )
HF Power rating (AES) :
75 W
HF Power rating (program) :
150 W
Coverage Angle H. (-6 dB) :
65¡Æ average, 630 Hz to 20 kHz
Coverage Angle V. (-6 dB) :
65¡Æ average, 630 Hz to 20 kHz
Monitor Taper :
42¡Æ
Directivity Index (DI) :
12.4 average, 630 Hz to 20 kHz
Signal Processing :
Proel DSO26
Flying System :
4 x M10 lateral
Connectors :
2 x Neutrik Speakon NL4MP paralleled, FULL-RANGE: 1+ LF+/HF+, 1- LF-/HF-, BIAMP: 1+ LF+, 1- LF-, 2+ HF+, 2- HF-.
Construction :
18 mm birch plywood, internally reinforced
Finishing :
Paint finish
Cabinet Colour :
Black
Mounting Pole :
1 x lateral
Weight :
33 kg (72.765 lb)
Dimensions (W x H x D) :
58.4 x 39.4 x 61.9 cm

Accessories
NAME
DESCRIPTION
Case for transport for 2 x EDGE15CXP monitors.


Frequency Response Graph

Beamwidth Diagram

Directivity Index (DI) graph

Attenuation map H.

Attenuation map V.

Polar diagrams H.

Polar diagrams V.
