Blackline H2
Two-way active/passive mid-high

The Blackline H2 is an all-horn, very high performance mid-high pack for dance club and live music stages. It features an innovative Hybrid™ 10” (250mm) mid-range horn with a unique ‘phase-ball' loading device. This maintains the 70º x 40º directivity pattern of the mid horn up to 2kHz where a 1” (25mm) exit HF compression driver takes over.

The H2 is housed in a trapezoidal birch ply cabinet and may be horizontally arrayed for wide coverage applications. Its twelve M8 inserts make a variety of mounting methods possible including horizontal or vertical mounting.

The H2 has a switchable active/passive 2kHz crossover network to permit either passive or bi-amp operation. The mid section extends down to 150Hz where it can be crossed over into an S218 subwoofer.

A Martin Audio M3 Electronic Controller is available to provide H2/S218 crossover and limiter facilities. See the M3 Electronic Controller Technical Specifications for suitable M3 Controller Cards.

FEATURES

• Two-way active/passive mid-high

• HybridTM mid-range horn

• ‘Phase-ball' loaded mid-driver

• Extended mid-range performance down to 150Hz

• M8 inserts for cabinet rigging

• Five year limited warranty

APPLICATIONS

• Mid/high for larger club performance

• Large scale club installs

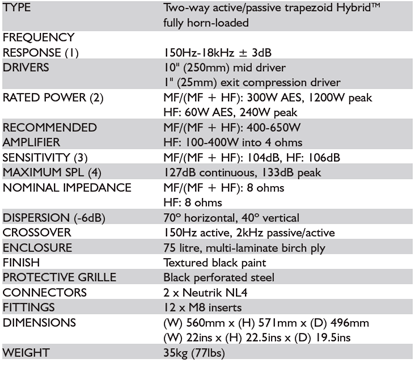

TECHNICAL SPECIFICATIONS

* H2 Specifications (PDF)

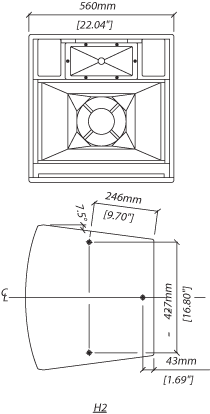

* H2 Technica Drawing (PDF)
