5040A - Active Subwoofer





Genelec 5040A Active Subwoofer

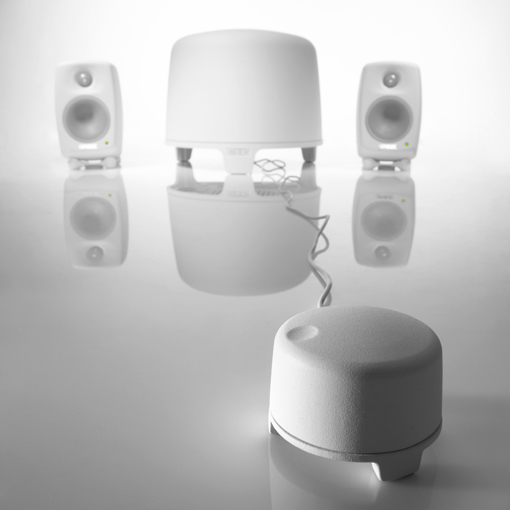

The new Genelec 5040A is an extremely compact active subwoofer designed to complement up to five 6010A's with accurate and dynamic bass response reaching down to 35 Hz. Matched perfectly with the 6010A's, the 5040A conveniently features a remote volume control allowing adjustment of the entire sound system as well as versatile acoustic controls for perfect room integration.

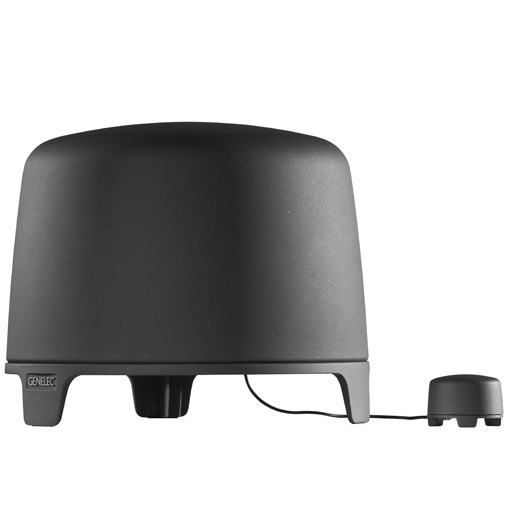

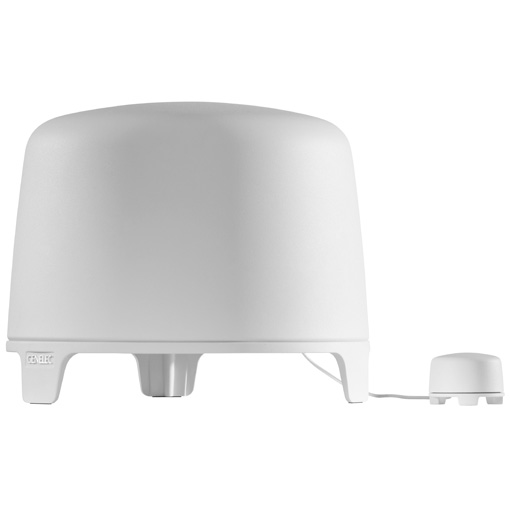

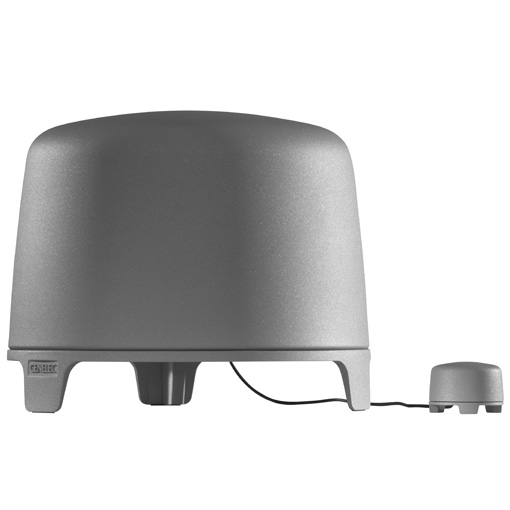

Designed by Genelec's R&D team in co-operation with internationally acclaimed Finnish designer Harri Koskinen, the 5040A subwoofer features an unobtrusive, modern appearance.

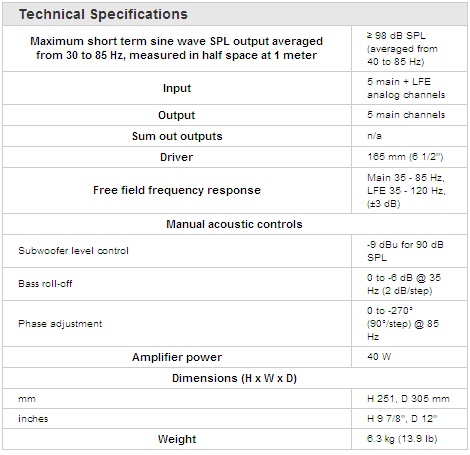

The 5040A features a magnetically shielded downward firing 6 1/2¡± bass driver attached to a die-cast aluminium base plate. The base plate also serves as the chassis for the 40 Watt amplifier and crossover filter circuitry. The 5040A packs a respectable punch of 98 dB maximum sound pressure level.

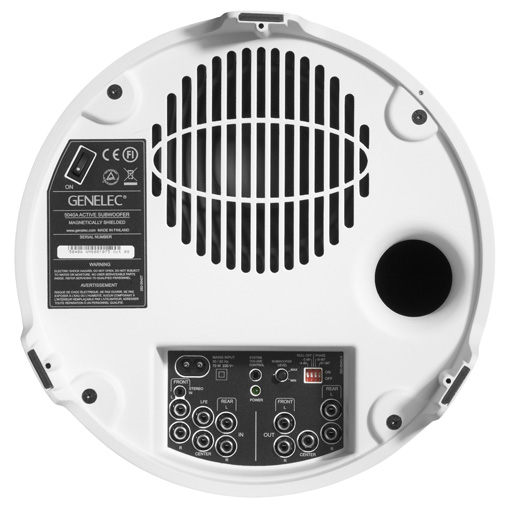

The built-in crossover unit on the 5040A features six RCA input connectors for five main channels and one LFE channel and five RCA output connectors for the 6010A loudspeakers. The main channels have a fixed high pass filter to work with Genelec 6010A loudspeakers. In addition to the RCA connectors, a 3.5 mm stereo jack input connector is provided for convenient connection to portable audio players or computers. Adjustable input sensitivity in combination with adjustable crossover phase allows a seamless integration between the subwoofer and the 6010A loudspeakers.

TEC winner 07

The 5040A is a TEC (Technical Excellence & Creativity) 2009 Award winner in the category Studio Monitor Technology.



Click
Click
Click
Click
Click
Click

Click

Click

Accessories / Options


Grille
1036A comes with 10 m cables. Optional lengths ( 5 / 15 / 20 m) quoted on request




Genelec DCW¢â Technology

The revolutionary Directivity Control Waveguide¢â (DCW¢â) technology greatly improves the performance of a direct radiating multi-way loudspeaker.

The DCW¢â waveguide is designed to match the frequency response and directivity characteristics of the drivers in the loudspeaker. This results in an excellent flatness of the overall frequency response for on and off-axis listening positions.

The improved directivity control reduces the reflected sound energy at the listening position. This improves the stereo and sound stage imaging and ensures very small sensitivity to varying control room acoustics, actually much smaller sensitivity than with any conventional direct radiator design.

The DCW¢â technology also improves the drive unit sensitivity even up to +6 dB, and therefore increases the maximum sound pressure level as well as decreases drivers and system distortion.

DCW¢â Technology key features:

  • Flat on and off-axis response for wider usable listening area
  • Increased direct-to-reflected sound ratio for reduced control room coloration
  • Improved stereo and sound stage imaging
  • Increased driver efficiency
  • Increased system Sound Pressure Level capacity
  • Decreased drive unit distortion
  • Reduced cabinet edge diffraction
  • Reduced system distortion
