16x16 Pro64® A-Net I/O card for Yamaha® digital devices.
Now featuring m-control™ for Yamaha digital consoles.

The 6416Y2 A-Net Interface Card is compatible with all Aviom Pro64® Series products, and, with an ASI A-Net Systems Interface module, can also be used with Pro16® Series output products, such as the industry standard A-16II Personal Mixer.*

The 6416Y2 A-Net Card supports up to 16 channels in and 16 channels out simultaneously, depending on the Yamaha host product's capacity and the selected system sample rate. Multiple cards may be used in a single host device (see the table below), providing up to 64 channels in and 64 channels out simultaneously. Inputs and outputs may be assigned to one of four A-Net network slot banks, while input channels may be individually activated as needed. Remote control of 6416m mic preamp gain can done from the Yamaha console using m-control™ .

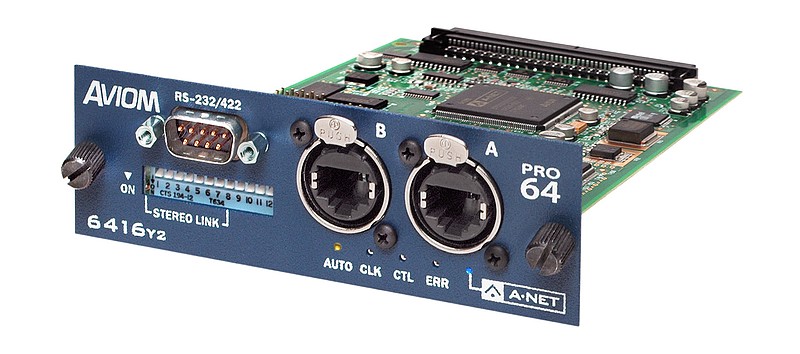

In addition, the 6416Y2 A-Net Card supports two interface paths to the Pro64 network's revolutionary Virtual Data Cables. The card features a front-panel DB9 connector for either RS-232 or RS-422 control data. In certain Yamaha digital consoles (LS9 series), control data can be routed to the card through the backplane connector, as these consoles do not have DB9 remote control ports built in. Internal DIP switches allow the VDC data paths to be configured for a variety of uses, including passing control data for remote Yamaha AD8HR microphone preamps with compatible Yamaha digital consoles.

Note: While the 01v96 and 02R96 digital consoles are compatible with the 6416Y2 Card for digital audio I/O routing, no provision for controlling remote preamps via RS-422 is available on these consoles.

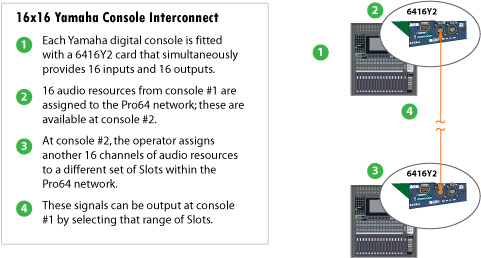

Pro64 audio networks featuring 6416Y2 A-Net Cards can be configured to slave to a host console or to pass clock information to the console through the card slot backplane. All Pro64 products feature Aviom's exclusive clock management algorithms, ensuring pristine clocking throughout a network, including console-to-console communications.

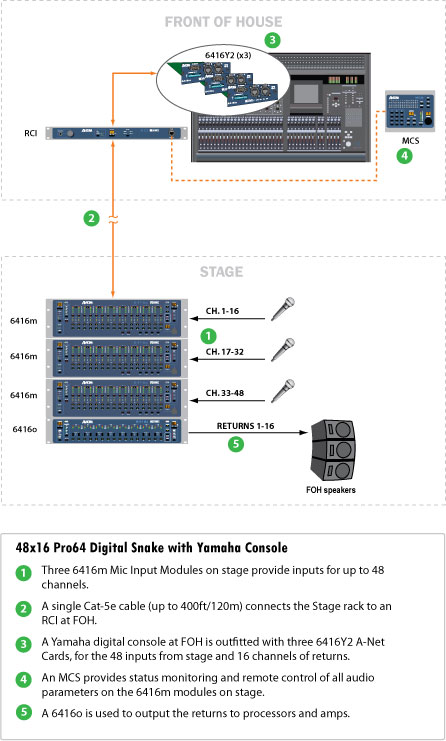

6416Y2 A-Net Cards can be connected serially or in parallel, using a Pro64 Merger Hub such as the MH10 or MH10f.

* Important Note : The original A-16 Personal Mixer (discontinued) is not compatible with the 6416Y2 Card. Some early A-16R Personal Mixers built prior to the release of the Y1 card are also not compatible. Contact Customer Service for additional compatibility info. Pro16 input modules including the AN-16/i and AN-16/i-M are not compatible with the 6416Y2 card.

Compatibility

The 6416Y2 A-Net Interface Card is compatible with the following Yamaha digital products. Note that the number of 6416Y2 Cards that can be used in each Yamaha device may be less than total number of available MY card slots in some cases. (Yamaha's recommendation for the number of cards that can be installed simultaneously in each product is based on the power available from the host's power supply.)

• Up to 16 channels in and 16 channels out simultaneously
• Variable sample rates: 44.1/48kHz or 88.2/96kHz
• Flexible and robust clocking allows simple console-to-console digital connections
• Supports remote control of 6416m mic preamp settings from select Yamaha digital consoles, using the Pro64 m-control™ firmware
• Stereo Link per channel pair for Pro16 Personal Mixers
• RS-422/232 Virtual Data Cable I/O (compatible with Yamaha® remote control protocol)

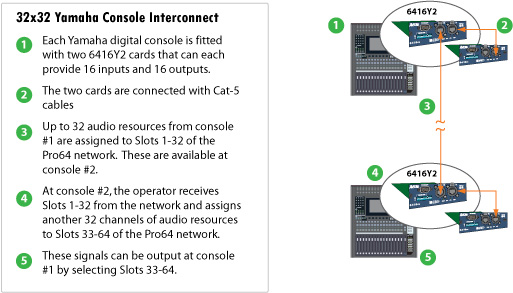

• Multiple cards per console
• Compatible with Yamaha mini-YGDAI card slots
