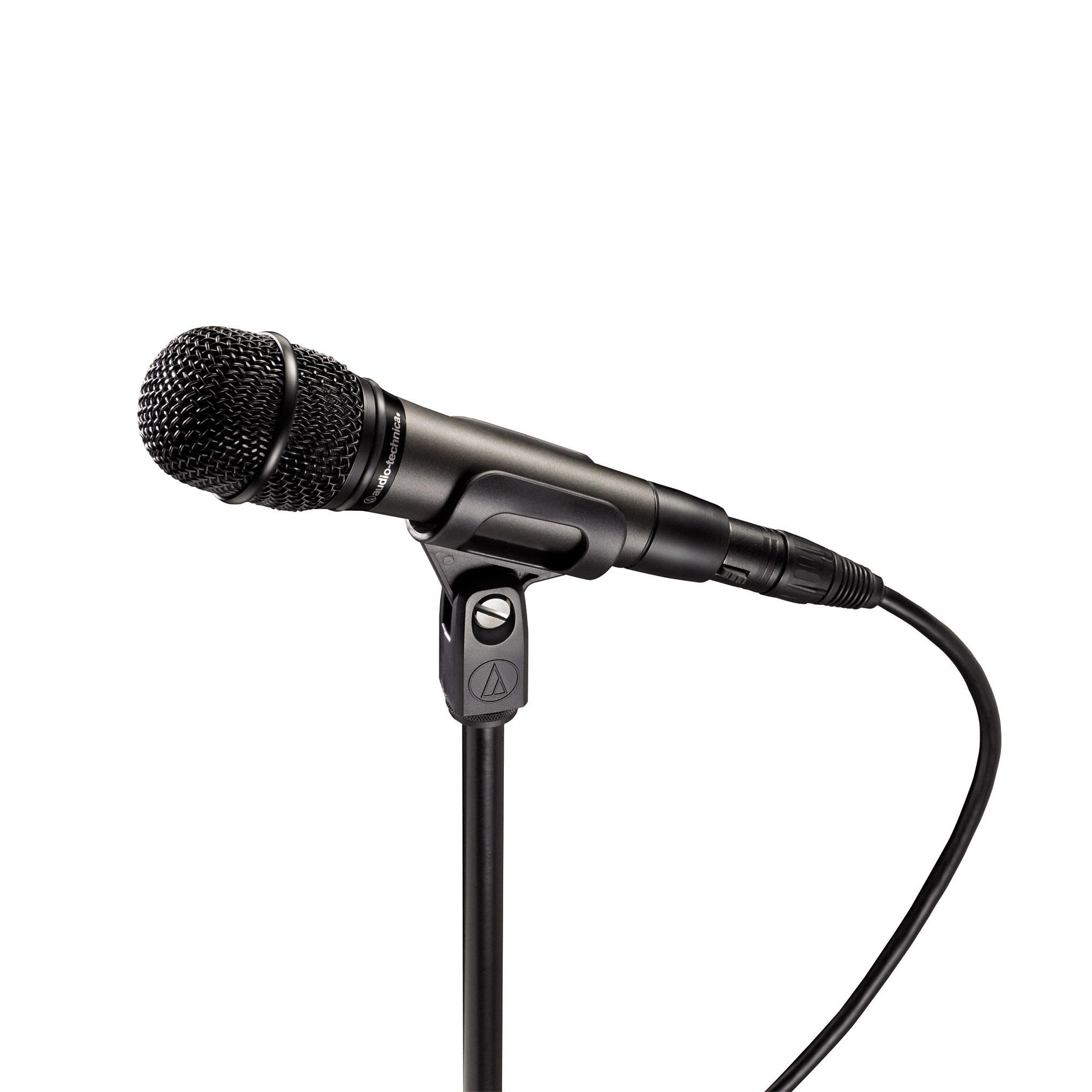

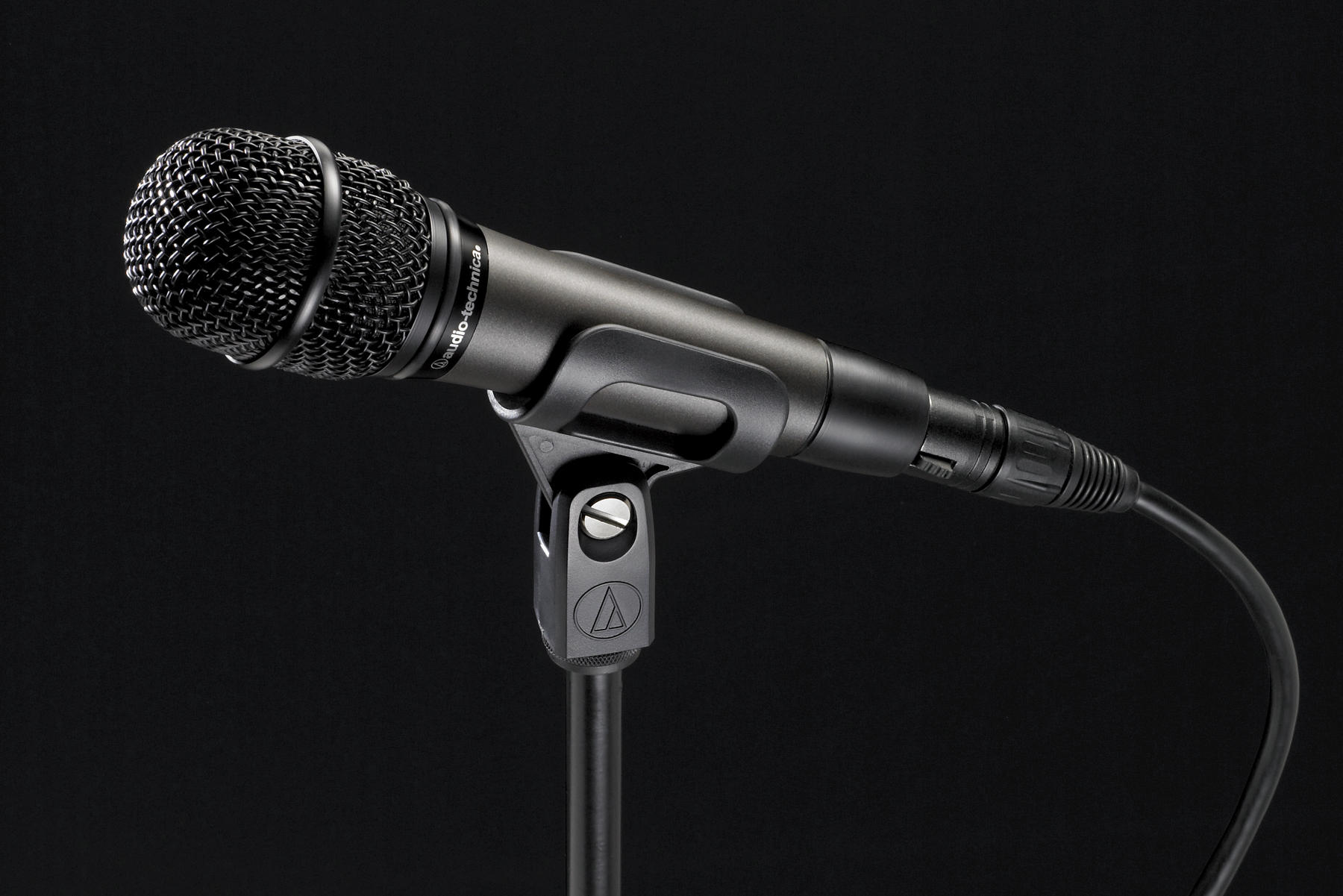

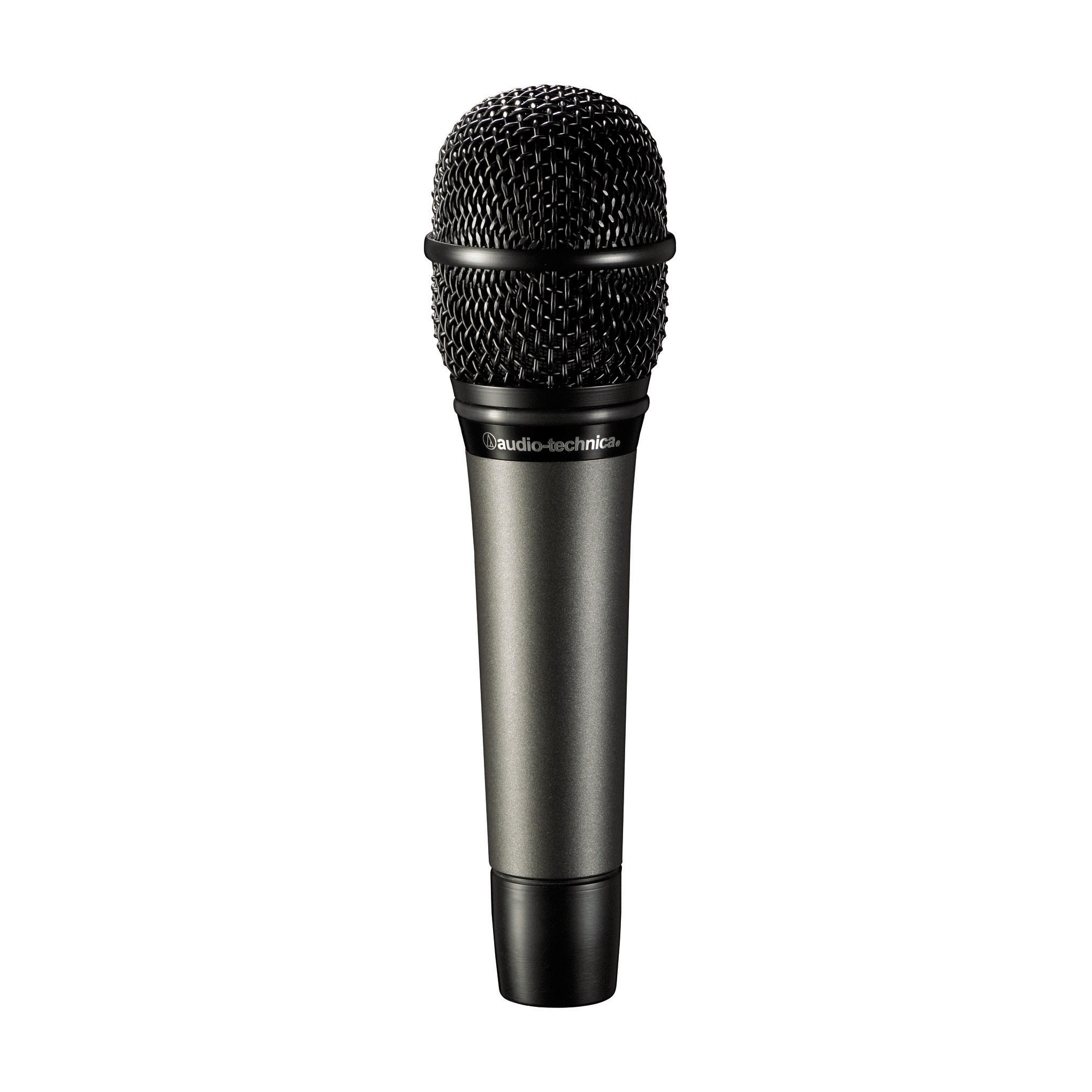

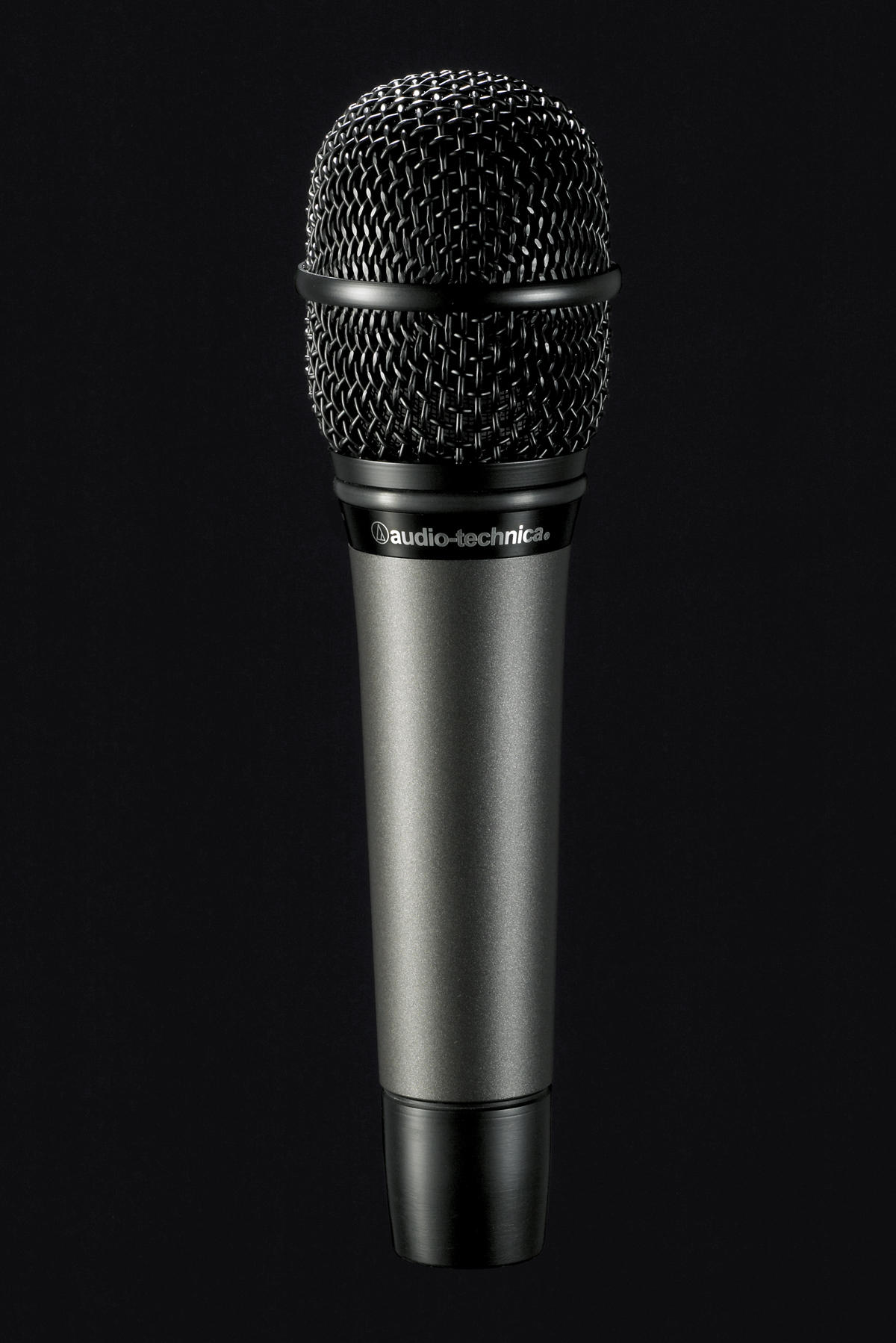

ATM610 - Hyper-cardioid Dynamic Handheld Microphone





Tuned for clear, detailed, extended-range reproduction of lead and backup vocals, the premier Artist Series dynamic vocal mic is equipped with a rare earth neodymium magnet, a tight hypercardioid polar pattern and multi-stage grille design. The microphone features an innovative dual-wall floating construction; the back-cavity assembly ¡°floats¡± inside the handle shell, providing outstanding isolation from handling noise.


  • Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Durable performance for professional applications
  • Special dual-wall floating construction reduces handling noise and assures consistent performance from mic to mic
  • Hi-ENERGY¢ç neodymium magnet for articulate vocal reproduction
  • Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
  • Quiet-Flex¢â stand clamp provides silent, flexible microphone positioning
  • Corrosion-resistant contacts from gold-plated XLRM-type connector
  • Rugged, all-metal design and construction for years of trouble-free use



ELEMENT Dynamic

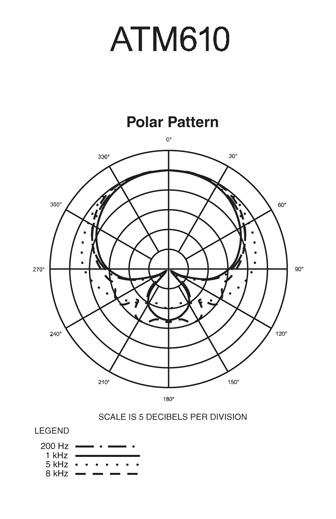

POLAR PATTERN Hypercardioid

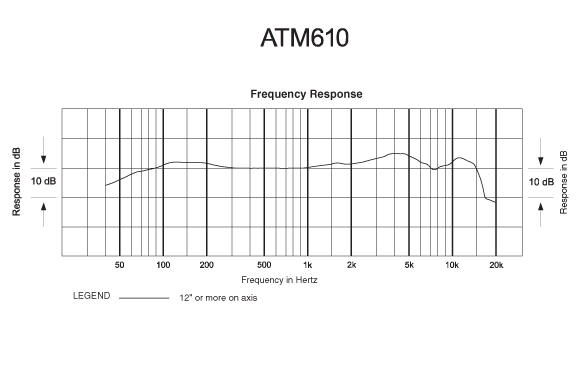

FREQUENCY RESPONSE 40-16,000 Hz
OPEN CIRCUIT SENSITIVITY ?55 dB (1.7 mV) re 1V at 1 Pa
IMPEDANCE 300 ohms
WEIGHT 280 g (9.9 oz)
DIMENSIONS 177.0 mm (6.97") long,
48.0 mm (1.89") diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
ACCESSORIES FURNISHED AT8470 Quiet-Flex¢â stand clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
AUDIO-TECHNICA CASE STYLE T6
