Audio-Technica's 4000 Series frequency-agile UHF body-pack and handheld wireless systems bring outstanding clarity and versatility to live performance, regional touring, fixed installations and more. At the heart of the 4000 Series is a rugged True Diversity half-rack receiver, the AEW-R4100, with two hundred selectable channels offered in each of two available UHF bands.
Receivers from both the 4000 and 5000 Series may be linked; they may be monitored by the 5000 Series system software. The included IntelliScan™ feature automatically determines and sets the best available frequencies on all linked receivers.
Multiple system configurations are available, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars.
- 200 selectable UHF channels per band and True Diversity reception for interference-resistant operation
- Available in two frequency bands:
541.500 - 566.375 MHz (TV Channels 25 - 30) and
655.500 - 680.375 MHz (TV Channels 44 - 49)
- IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers
- Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
- Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
- Link and coordinate multiple receiver channels
- High-visibility white-on-blue LCD information display
- Metal half-rack receiver chassis with mounting hardware
- All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls, and 10 mW/35 mW switchable RF power
- All components store up to five preset configurations, with customized "names" if desired

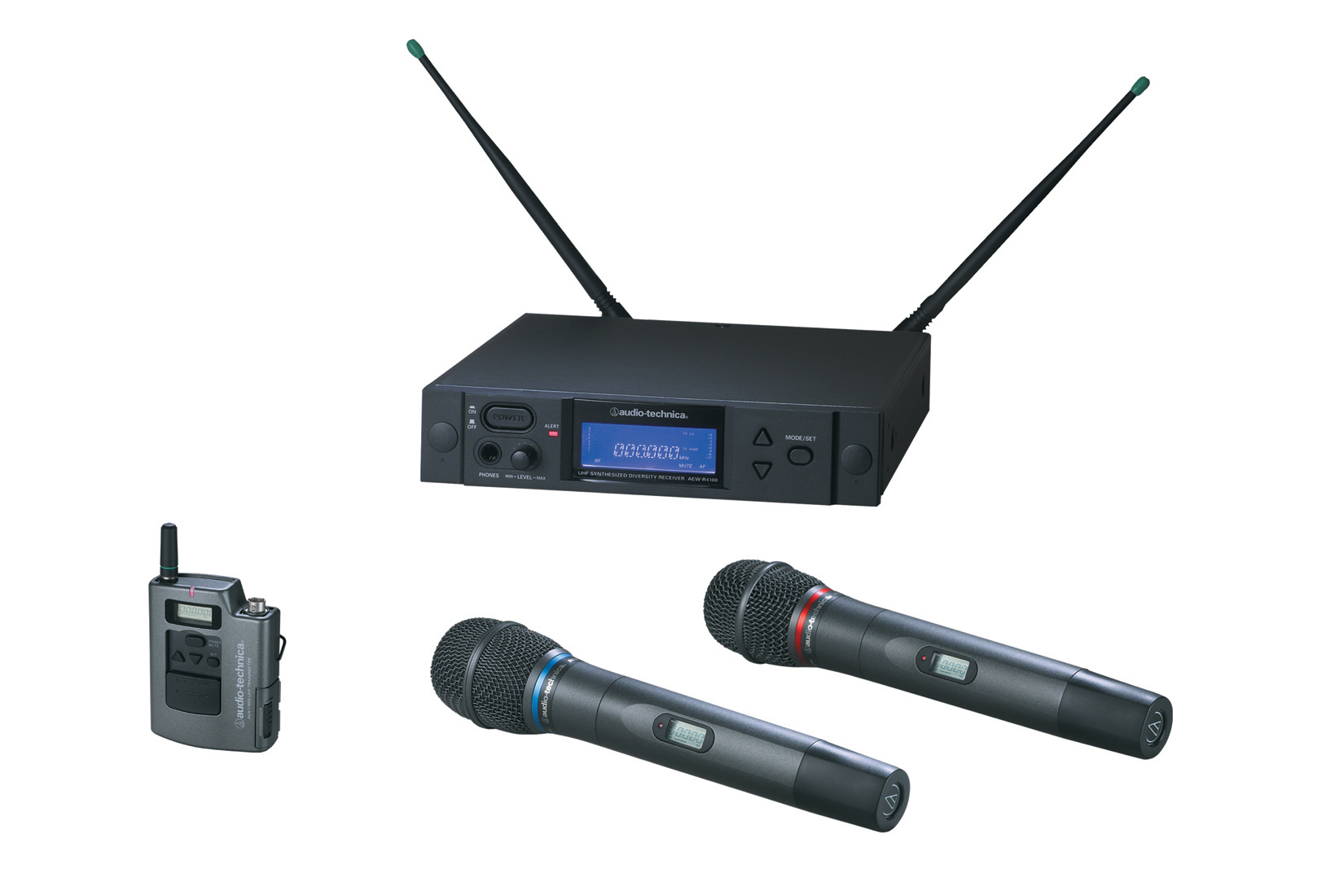

SYSTEM CONFIGURATIONS
 |

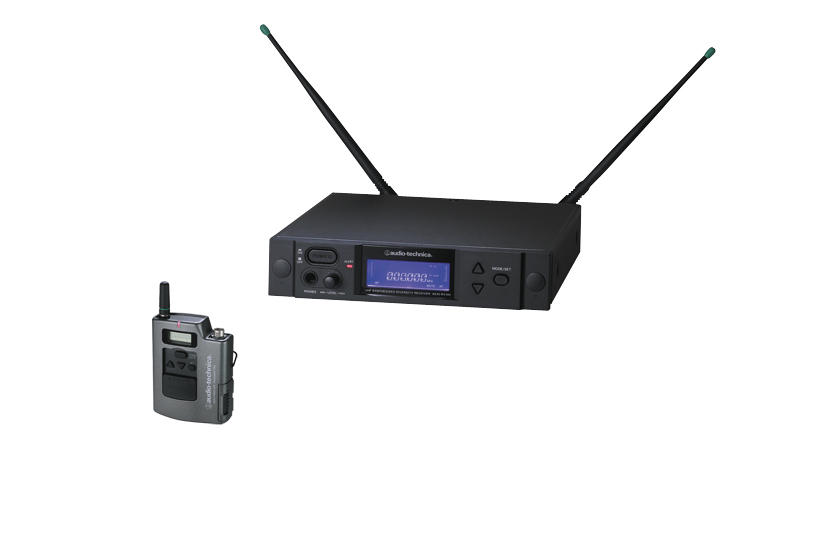

AEW-4110
AEW-R4100 receiver and AEW-T1000 UniPak® transmitter.
Select a Wireless Essentials® microphone or cable to complete the system. |
|
 |
AEW-4230

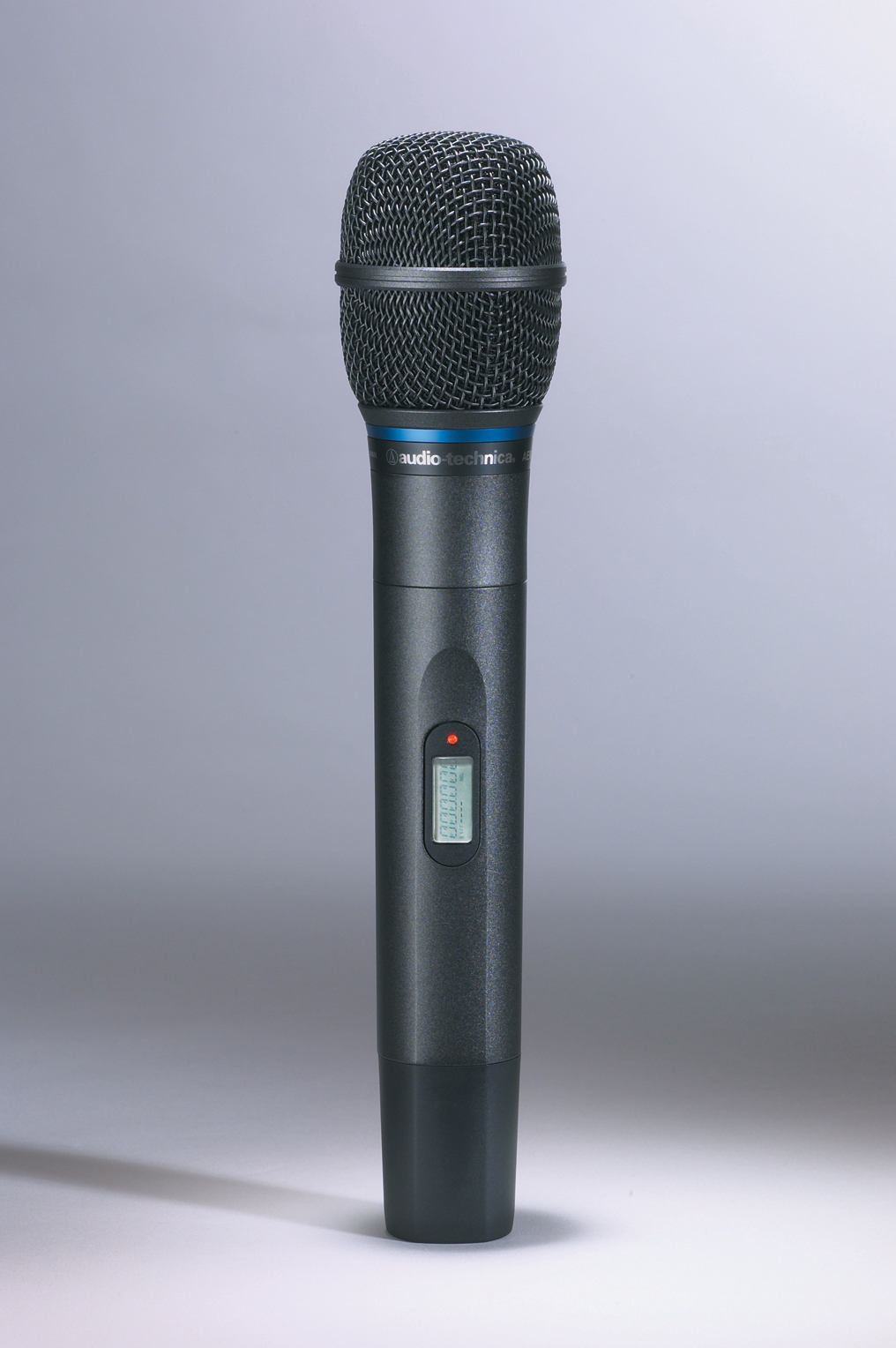

AEW-R4100 receiver and AEW-T3300 cardioid condenser microphone/transmitter. |
|
 |

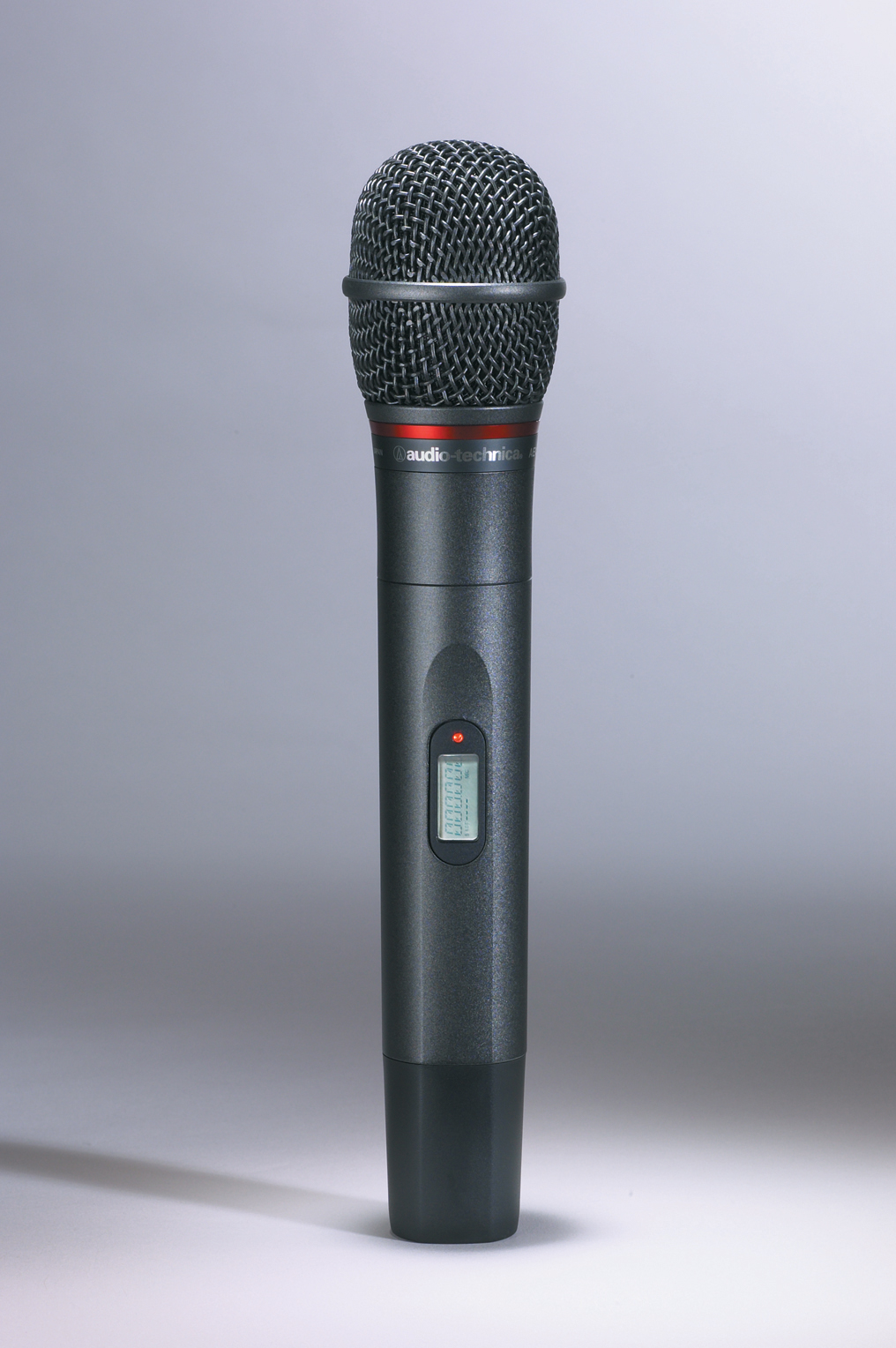

AEW-4240
AEW-R4100 receiver and AEW-T4100 cardioid dynamic microphone/transmitter. |
|
 |

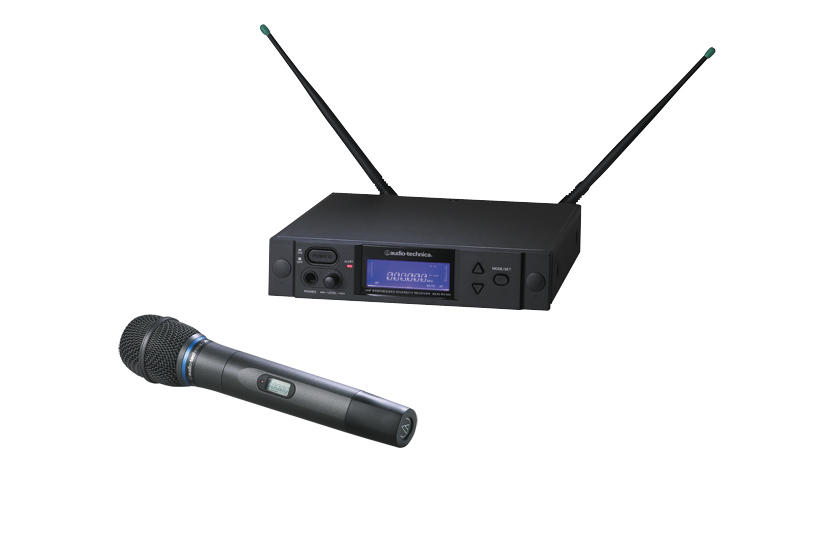

AEW-4250
AEW-R4100 receiver and AEW-T5400 cardioid condenser microphone/transmitter. |
|
 |
AEW-4260
AEW-R4100 receiver and AEW-T6100 hypercardioid dynamic microphone/transmitter. |
|
 |
AEW-4313
AEW-R4100 receiver, AEW-T1000 UniPak® transmitter, and AEW-T3300 cardioid condenser microphone/transmitter.
Select a Wireless Essentials® microphone or cable to complete the system. |
|
 |

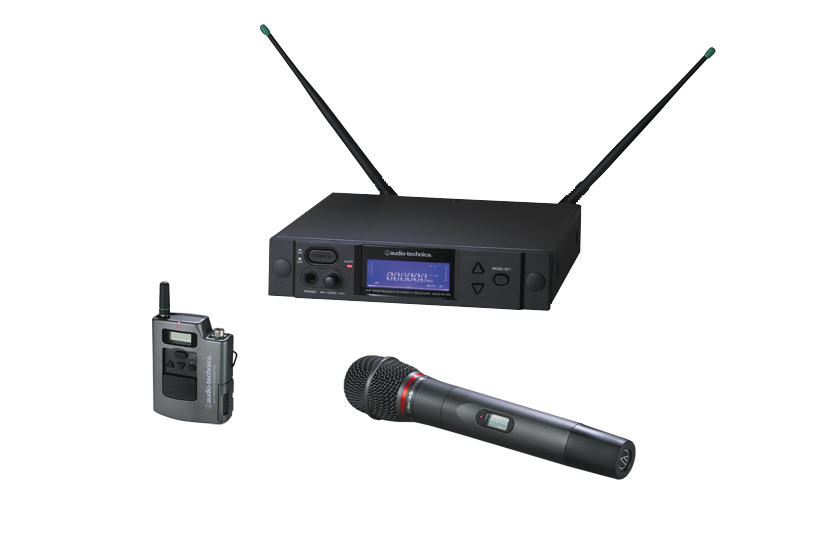

AEW-4314
AEW-R4100 receiver, AEW-T1000 UniPak® transmitter, and AEW-T4100 cardioid dynamic microphone/transmitter.
Select a Wireless Essentials® microphone or cable to complete the system. |
|
 |

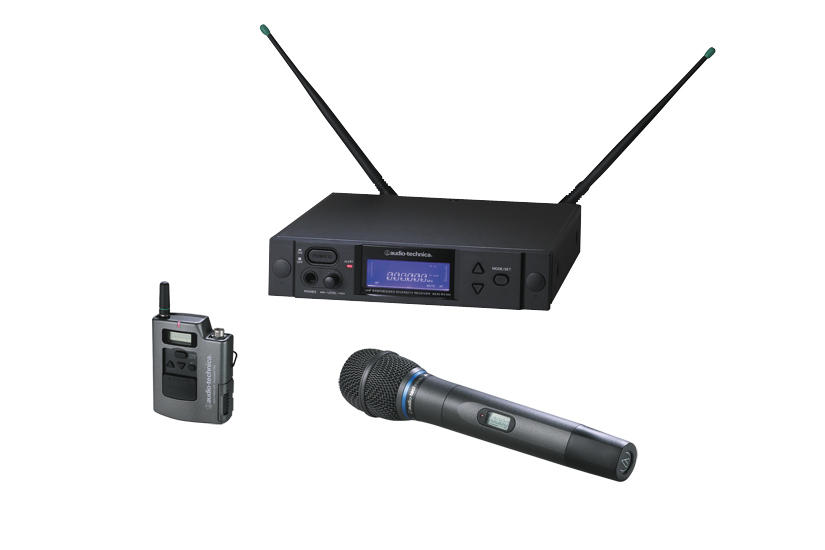

AEW-4315
AEW-R4100 receiver, AEW-T1000 UniPak® transmitter, and AEW-T5400 cardioid condenser microphone/transmitter.
Select a Wireless Essentials® microphone or cable to complete the system. |
|
 |
AEW-4316
AEW-R4100 receiver, AEW-T1000 UniPak® transmitter, and AEW-T6100 hypercardioid dynamic microphone/transmitter.
Select a Wireless Essentials® microphone or cable to complete the system. |
OVERALL SYSTEM SPECIFICATIONS
|
|
|
| Operating Frequencies |
UHF band
Band C: 541.500 to 566.375 MHz
Band D: 655.500 to 680.375 MHz |
|
| Number of Channels |
200 total per band |
|
| Frequency Stability |
±0.005%, Phase Lock Loop frequency control |
|
| Modulation Mode |
FM |
|
| Normal Deviation |
±5 kHz |
|
| Operating Range |
300' typical |
|
| Operating Temperature Range |
41° F (5° C) to 113° F (45° C) |
|
| Frequency Response |
70 Hz to 15 kHz |
|
|

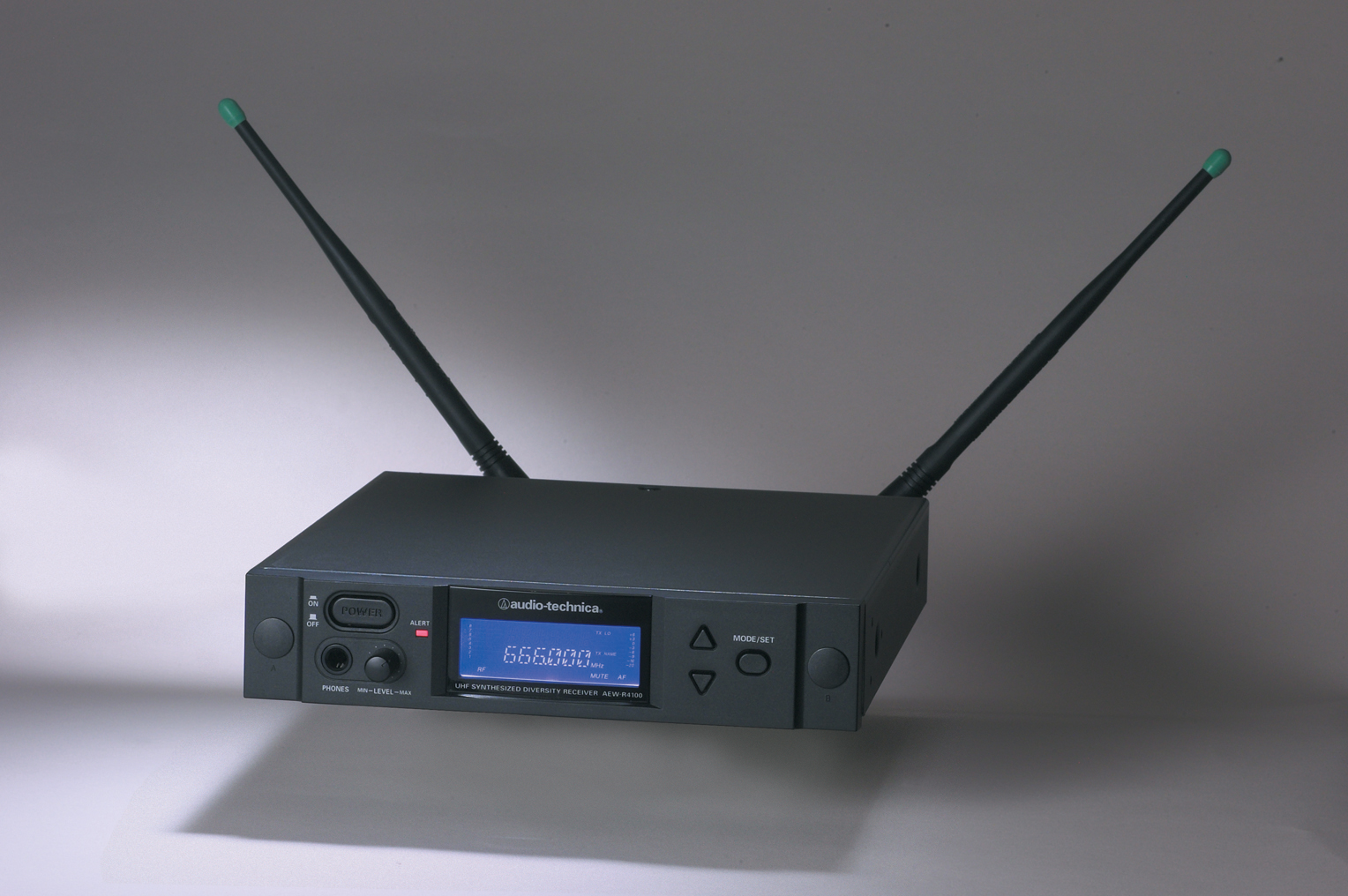

RECEIVER SPECIFICATIONS
|
|
|
| Receiving System |
Dual independent RF sections, automatic-switching diversity |
|
| Image Rejection |
60 dB typical |
|
| Signal-to-noise Ratio |
115 dB at 40 kHz deviation (IEC-weighted, 75 kHz maximum modulation) |
|
| Total Harmonic Distortion |
<=1% (10 kHz deviation at 1 kHz) |
|
| Sensitivity |
20 dBμV (S/N 70 dB at 5 kHz deviation, IEC-weighted) |
|
| Intermediate Frequency |
65.75 MHz, 10.7 MHz |
|
| Audio Output - Microphone |
(ATTN switch at "0")
25 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load) |
|
| Audio Output - Instrument |
(ATTN switch at "0")
50 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load) |
|
| Audio Output Attenuator (ATTN) |
Three-position switch: 0 / -6 / -12 dB |
|
| Output Connectors (Microphone) |
XLRM-type (balanced) |
|
| Output Connectors (Instrument) |
1/4" (6.3 mm) TS unbalanced phone jack
|
|
| Headphone Output |
Connector: 1/4" (6.3 mm) TRS ("stereo") phone jack
Power Output: 10 mW + 10 mW at 1 kHz, ±5 kHz deviation into 32 ohms; maximum output, 220 mW + 220 mW into 32 ohms.
|
|
| Antenna Power |
DC 10V-12V, 20 mA (BNC-type jack) |
|
| Power Supply |
100-240V AC 50/60 Hz; 8W
|
|
| Dimensions |
8.31" (211.0 mm) W x
1.74" (44.0 mm) H x
9.26" (235.0 mm) D
|
|
| Net Weight |
3.8 lbs (1.7 kg)
|
|
| Accessories Included |
Detachable IEC-type AC power cable; two flexible UHF half-wave antennas; link cable; rack-mount adapters
|
|
|

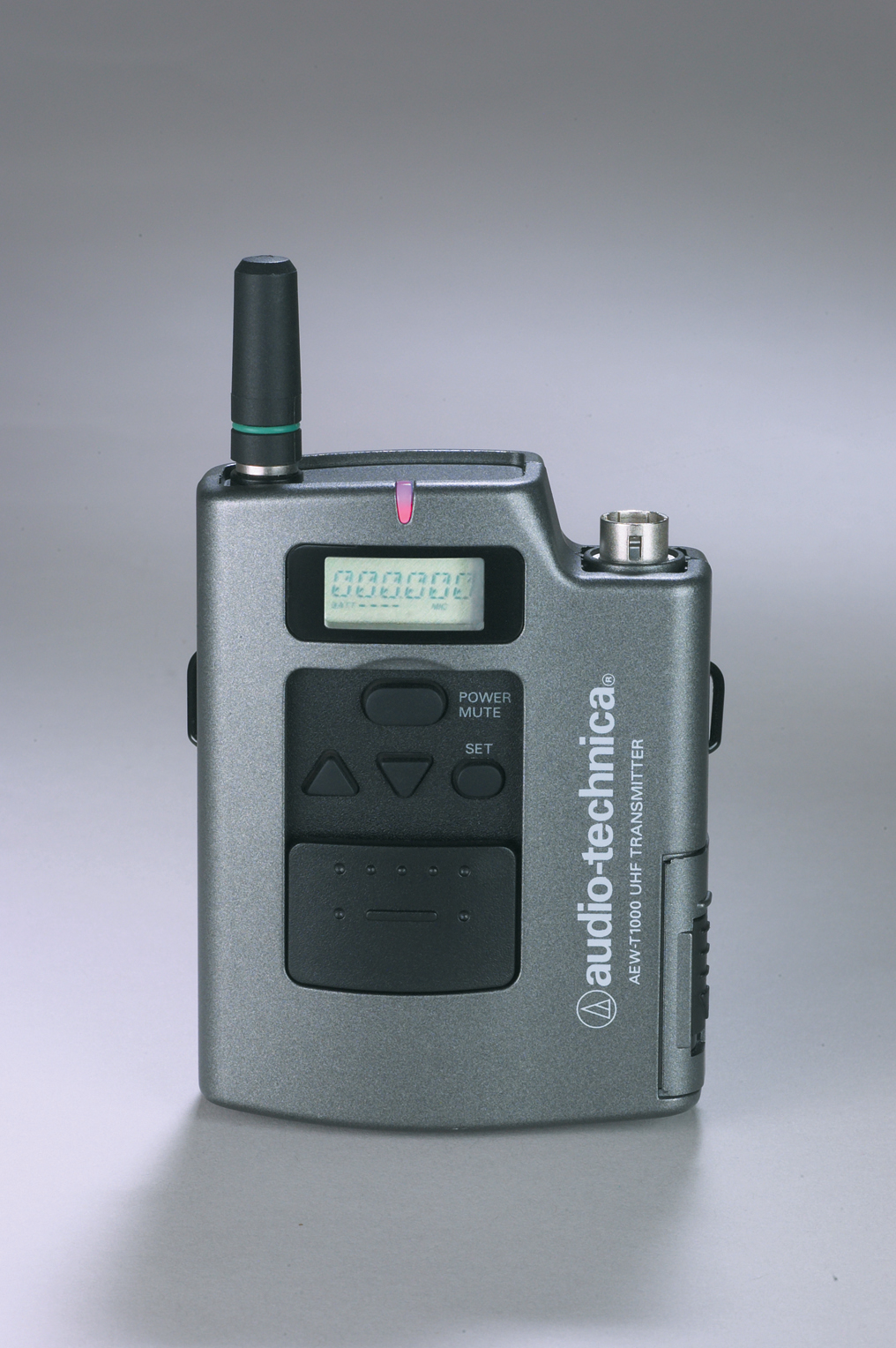

BODY-PACK TRANSMITTER SPECIFICATIONS
|
|
|
| RF Power Output |
High: 35 mW; Low: 10 mW, nominal |
|
| Spurious Emissions |
Under federal regulations |
|
| Microphone Dynamic Range |
>=110 dB, A-weighted |
|
| Instrument Dynamic Range |
>=100 dB, A-weighted |
|
| Input Connections |
High impedance, low impedance, bias |
|
| Batteries |
Two 1.5V AA alkaline (not included) |
|
| Current Consumption |
High: 185 mA; Low: 165 mA, typical |
|
| Battery Life |
Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern |
|
| Dimensions |
2.60" (66.0 mm) W x
3.43" (87.0 mm) H x
0.94" (24.0 mm) D |
|
| Net Weight |
4.4 oz (125 g) |
|
|
|
HANDHELD TRANSMITTER SPECIFICATIONS
|
|
|
| RF Power Output |
High: 35 mW; Low: 10 mW, nominal |
|
| Spurious Emissions |
Under federal regulations |
|
| Dynamic Range |
>=110 dB, A-weighted |
|
| Microphone Element |
AEW-T3300: Cardioid Condenser
AEW-T4100: Cardioid Dynamic
AEW-T5400: Cardioid Condenser
AEW-T6100: Hypercardioid Dynamic |
|
| Batteries |
Two 1.5V AA alkaline (not included) |
|
| Current Consumption |
High: 185 mA; Low: 165 mA, typical |
|
| Battery Life |
Approximately 6 hours (High); 8 hours (Low), depending on battery type and use pattern |
|
| Dimensions |
AEW-T3300, AEW-T5400: 9.41" (239.0 mm) long,
1.97" (50.0 mm) maximum diameter
AEW-T4100, AEW-T6100: 9.33" (237.0 mm) long,
1.89" (48.0 mm) maximum diameter |
|
| Net Weight |
AEW-T3300: 9.5 oz (270 g)
AEW-T4100: 9.7 oz (276 g)
AEW-T5400: 10.0 oz (285 g)
AEW-T6100: 9.7 oz (275 g) |
|
| Accessory Included |
AT8456a Quiet-Flex™ stand clamp |
|
|
|
|
