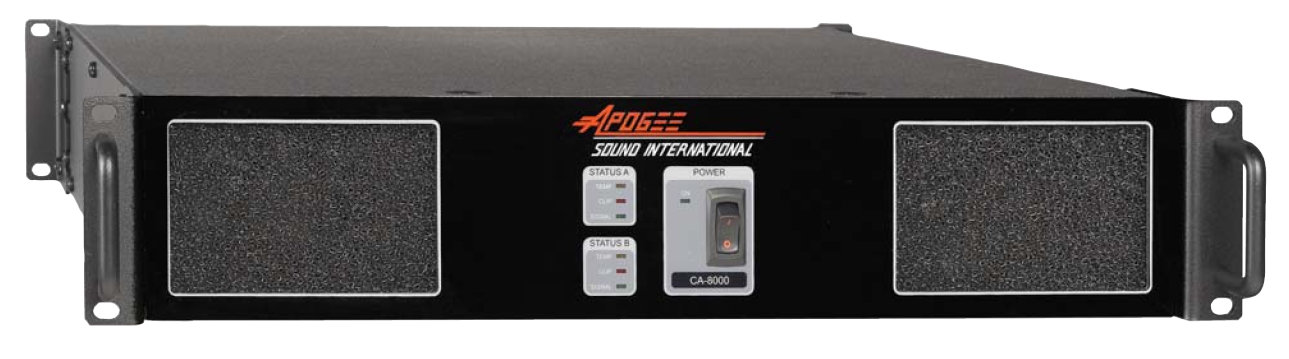

CA-Series
Professional Amplifiers

? Permanent Installations ? Commercial Sound

Available Models:
CA-2000, CA-4000, & CA-8000

Apogee's CA-Series amplifiers offer cost-effective performance for permanent installations and commercial sound. Built around a rugged chassis, CA amplifiers use the latest in power MOSFET technology. They provide unparalleled sonic quality, exceptional reliability, and reduced heat output. The robust power supplies use special low ESR capacitors and uniform-wound toroidal transformers.

Three models are available to cover most requirements. All models are only two rack spaces high, and feature rear panel level controls to avoid tampering or inadvertent adjustment. The air intake and air filter are on the front panel allowing easy access when cleaning is required.

The front-end circuitry features an advanced clip eliminator to reduce distortion. Speaker protection is provided by means of an ultra-fast crowbar circuit. All models are equipped with adjustable speed fans for quiet, efficient cooling and feature internally configurable AC mains for 120 VAC or 230 VAC.

? Unparalleled Sonic Quality

? Exceptional Reliability

? Cost-Effective Design

? Reduced Heat Output

? Uses Mosfet Technology

all power figures per channel
CA-2000:
4 ohms/275 watts; 8 ohms/180 watts

CA-4000:
4 ohms/635 watts; 8 ohms/395 watts

CA-8000:
4 ohms/940 watts; 8 ohms/550 watts
