Introducing the Apogee X-Series.
Changing the Face of Digital Audio... Again.

Featuring BIG BEN's C777 clocking technology and optional
X-Series Expansion Cards for direct connection to Symphony,
Pro Tools | HD, and computers equipped with FireWire 400

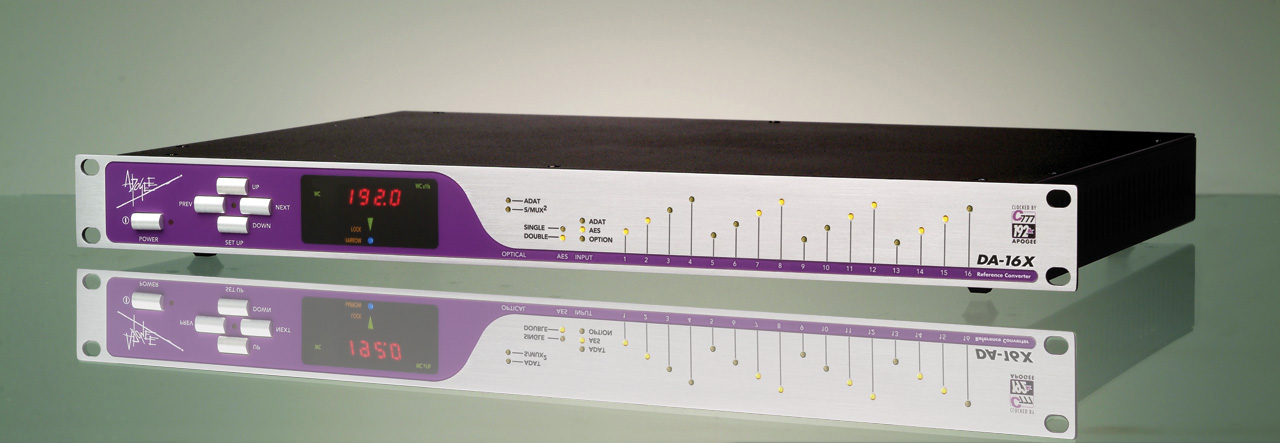

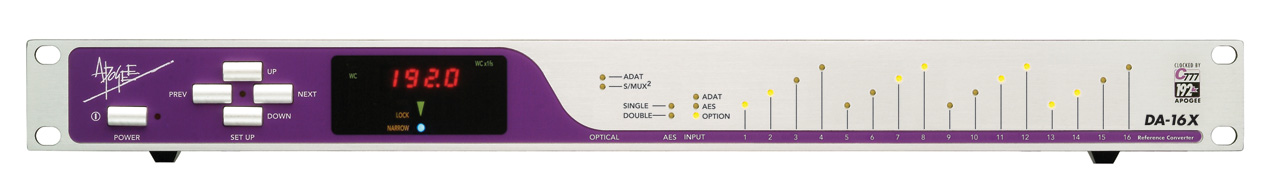

The AD-16X and the DA-16X, Apogee's latest and most advanced conversion systems, take the legendary quality of Apogee a huge step forward. Features such as a redesigned power supply, standard 192kHz sampling rates, the C777 clocking technology found in Big Ben, and optional Symphony ,Pro Tools HD, and FireWire expansion cards, make the AD & DA-16X the most powerful and flexible conversion combination ever. And, not only does the X-Series hardware offer unequaled, groundbreaking technology but it makes it available at a fraction of the cost associated with previous, premium Apogee gear.

Advanced High-Definition Conversion
The most critical component in the digital recording environment is proper, high-quality conversion and since the dawn of digital recording the most desired converters have been made by Apogee. With up to 192k standard sample rates, the AD & DA-16X combine Apogee's legendary conversion quality with the very latest in high-definition digital to provide unrivaled flexibility and quality.

Redesigned Power Supply
Enabling optimum conversion requires a state of the art power supply. The fully redesigned power system of the AD & DA-16X incorporates a specially designed Synchronous Switching power supply that works in conjunction with Apogee's very stable low jitter clock and filtering technology to provide superior heat and noise performance and an improved transient response over our previous linear power supply. This creates a power system that delivers total efficiency and provides an ideal environment for premium conversion.

Redesigned Analog Section
Incorporated in the AD & DA-16X are the very latest developments in Apogee's groundbreaking analog circuit design. Through sophisticated implementation and optimal configuration, the selection of premium, contemporary opamps allows the X-Series to deliver conversion performance never before heard, while maintaining the signature Apogee sound: Clear, transparent, focused and punchy.

C777 Clocking used by Big Ben
The AD & DA 16-X use Apogee's C777 clocking technology. Famous for keeping Big Ben on time, the C777 utilizes an entirely digital process that Apogee has developed with the most advanced Direct Digital Synthesis (DDS) technology and DSP-based digital filtering. With a stable, crystal based digital PLL handling the clocking, AD-16X and DA-16X are able to intelligently manipulate incoming signals and adapt to them accordingly. The result? The most aggressive jitter reduction ever and an astonishing and noticeable difference in sound quality.

Connect with Symphony, Pro Tools HD or any
FireWire Enabled Computer
Like the Rosetta 800, the AD & DA-16X offer an expansion card slot that greatly increases connectivity possibilities. Add an optional X-Symphony card to connect to Apogee's revolutionary Symphony system, Add an optional X-Series HD card and connect your AD & DA-16X directly to your computer via your HD Core Card, or Add an X-FireWire card and enjoy a direct, low latency connection that supports the FireWire 400 standard.

SoftLimit: Maximize Levels, Minimize Overs
One of the greatest difficulties in digital recording is getting an adequate level without clipping and unwanted distortion. Soft Limit is an analog peak limiter that enables the capture of an additional 4-6 dB of level without going into an ‘over' condition. Short of purchasing a very expensive stand-alone compressor/limiter, there is currently no product on the market that handles this process better than SoftLimit.

UV22HR: Dither Down with 24-bit Detail
UV22HR is Apogee´s industry standard technology for reducing the word-length of a high-resolution digital signal to 16 bits for the CD mastering. UV22HR is also being employed to produce dramatically improved internet and computer audio content without increased file sizes or data rates. It is estimated that 8 out of 10 hit records are mastered using Apogee's UV22HR technology.

High Performance Output
The DA-16X uses Apogee's newly developed electronically balanced line drivers. Originally designed for the Mini-DAC, these line drivers are able to simulate true transformer behavior. The circuitry is an ultra low output impedance, high current driver, capable of running levels up to 26 dBu to the most complex or low impedance loads. Recording studios utilizing vintage audio-equipment will find this particularly valuable. Ultimately, the output performance of the DA-16X achieves perfect symmetry when used in balanced mode (even with an unsymmetrical load) and no increased distortion when used unbalanced.

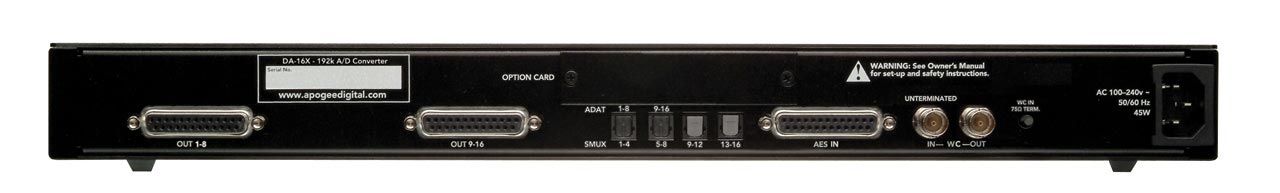

INPUTS

• AES-EBU in x 8, transformer balanced, DSUB 25pin connector (192k single wide compatible)
• Optical: toslink x 4, supporting ADAT and SMUX protocol
• WC in: BNC 75 ohm with switchable termination

OUTPUTS

• WC out: BNC 75 ohm
• Analog out 1-8 Balanced, DSUB 25pin connector.
• Analog out 9-16 Balanced, DSUB 25pin connector.

OPTION SLOT

• One x-type card can be installed, for Firewire, HD and or other future format connectivity.

SPECS

• Sample rates internal: 44.1/48/88.2/96/176.4/192k
• Sample rates external: 44.1/48/88.2/96/176.4/192k +/- 10%
• Frequency response at 44.1 k : 5 - 20.000 Hz (+/- 0.2 dB)
• Analog levels: 6 to 24dBu max through digital gain adjustment. (Compatible with -10dBV levels)
• THD+N: -107 dB
• Dynamic range: 118 dB A weighted
• Power: 100 -240 VAC, 50 - 60 Hz, 65 Watt

Connect Apogee converters directly to Pro Tools | HD™ & Accel core cards, no other hardware required ...

At last Apogee makes the direct connection to Pro Tools | HD systems a reality. The Apogee X-Series-HD option card allows for direct connectivity between Pro Tools HD™ systems and the AD&DA-16X, Rosetta 800 and Rosetta 200. The result is an incredibly powerful combination of Digidesign's™' industry leading software and a new generation of superior Apogee conversion and clocking hardware that provides a workstation that will excite Apogee and Pro Tools™ fans alike.

Features:

* Primary HD port for connecting directly to HD Core or Accel cards.
* Expansion port for daisy-chaining multiple Apogee devices (AD-16X, DA-16X, Rosetta 800 & Rosetta 200)
* Compatible with the latest versions of ProTools
* May be used along side similar interfaces (such as Digidesign 96 I/O, 192 I/O, Prism Dream ADA-8)
