New 20-channel USB audio interface

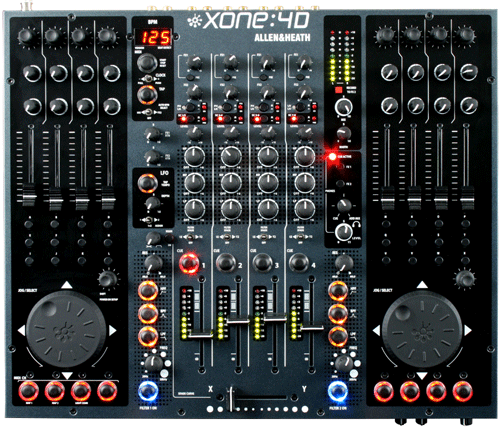

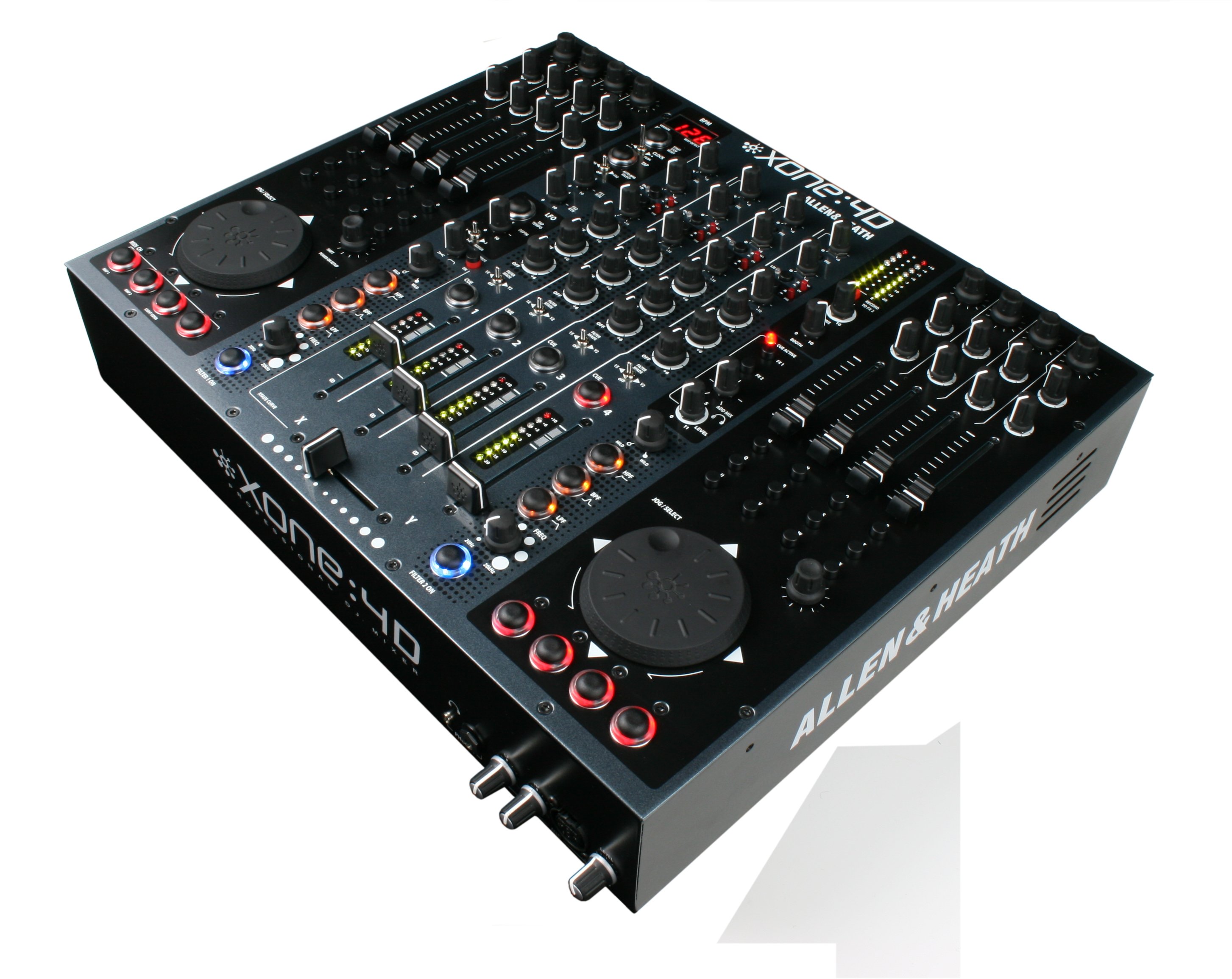

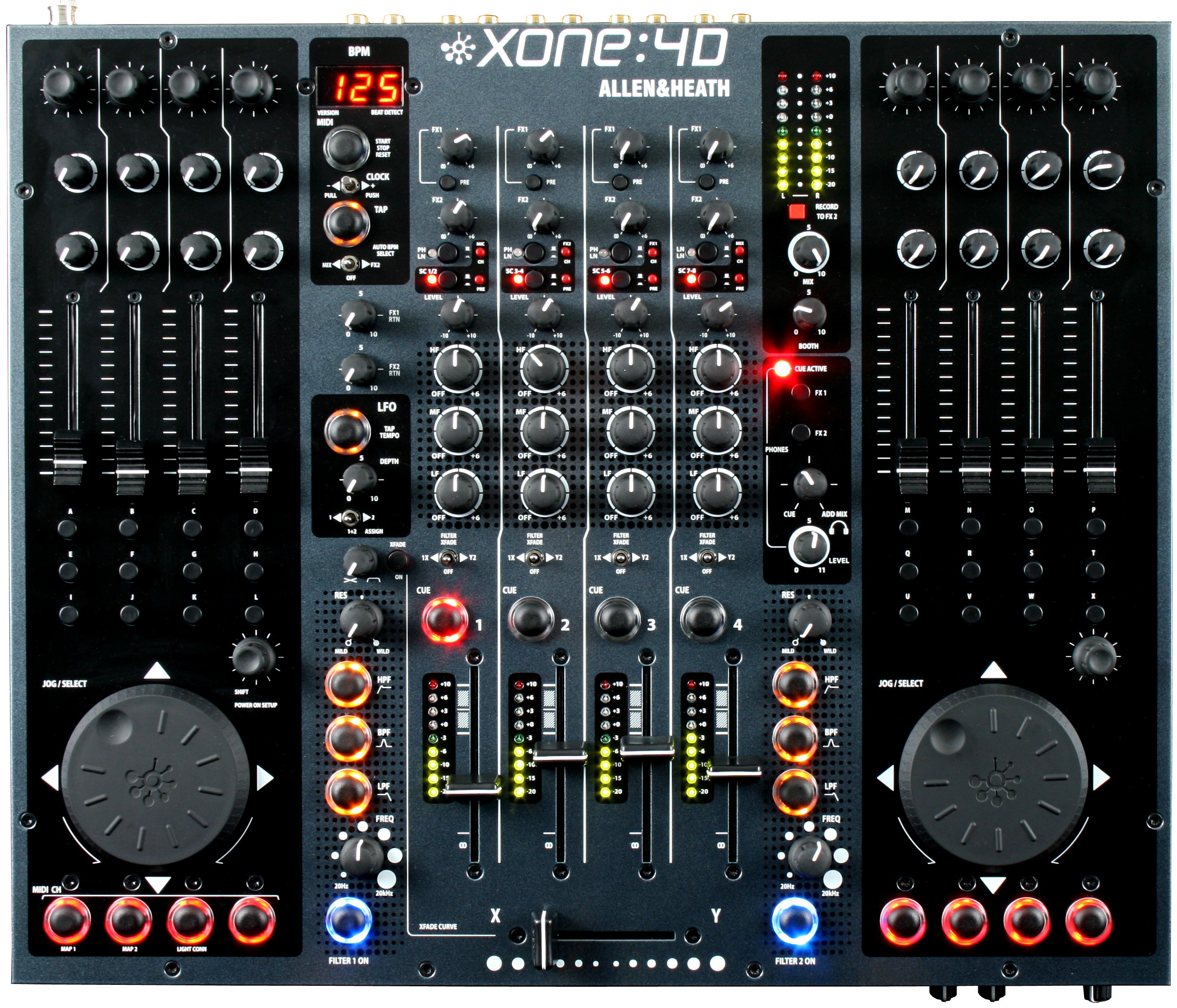

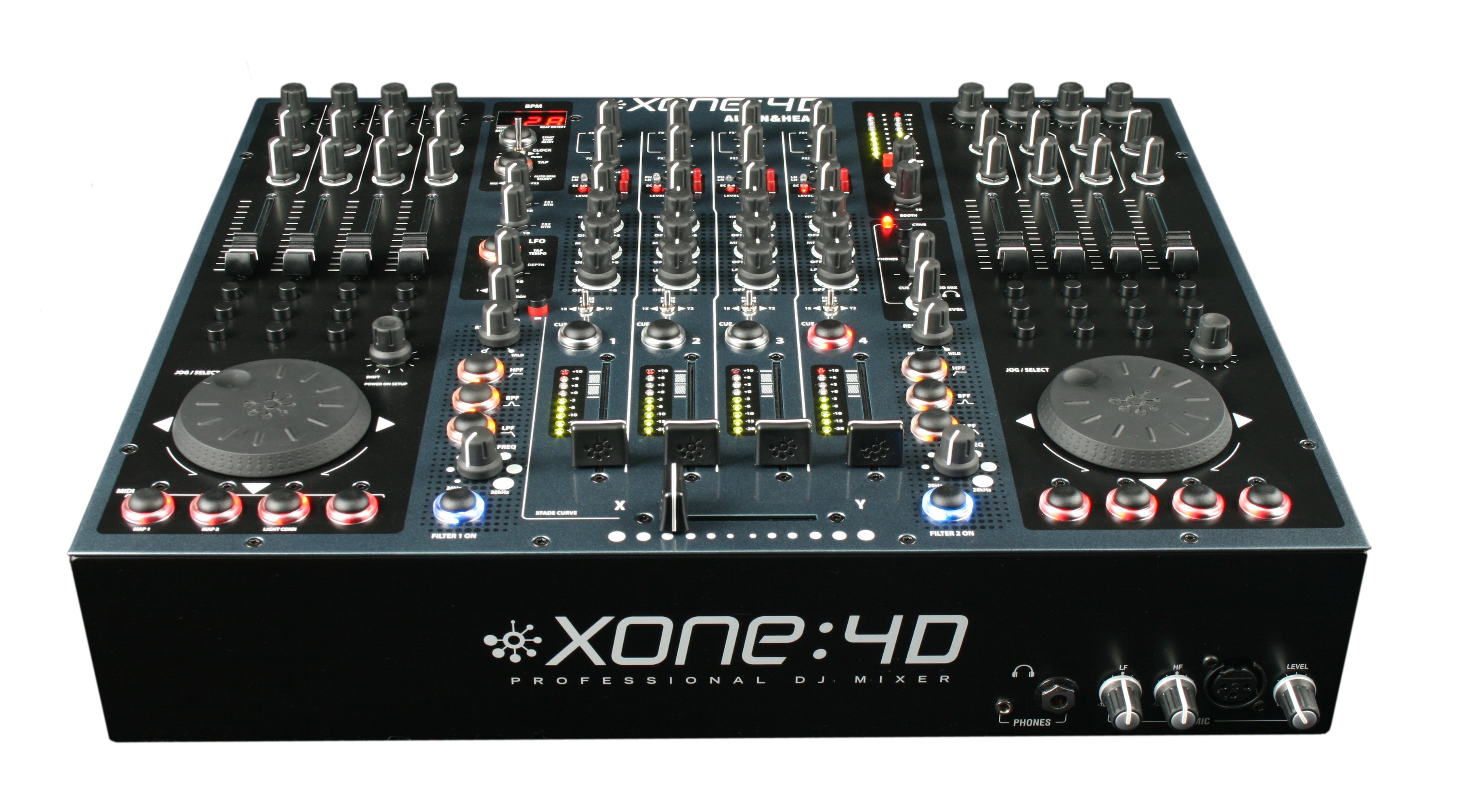

The Xone:4D continues the seamless integration of computer-based digital media into the traditional DJ workspace, but with a further enhanced feature set. Combining a fully featured, high specification professional analogue DJ mixer with 105 MIDI controllers and 227 MIDI messages, a completely new, high-end, 96 kHz / 24-bit 20 channel Allen & Heath-designed USB 2.0 soundcard, the progressive XONE:4D has been developed in conjunction with some of the world?s most cutting-edge DJ/producers.
New features for the 4D include the new 20-channel USB 2.0 soundcard, a completely new BPM counter, assignable LFO with step VCF-filter and fresh new paint.

Mixer:
? 4 multi-input stereo channels: RIAA preamps for turntables on 3 inputs, (channel 4 is Line/Line)
? Soundcard output routing switches for each channel (1-2, 3-4, 5-6 & 7-8)
? 3-band total kill EQ: 6dB to off
? 2 FX sends: pre/post selection (internal on FX2)
? 2 stereo returns
? Headphone monitor with mix/cue control: 3.5mm and ¼? sockets
? 2 analogue VCF filters low-pass, band-pass, high-pass (can be combined for more filter types), resonance frequency, and filter 'on' switch
? Filter assignable LFO with depth control and brand-new editable fader step-filter function.
? Completely re-designed and functionally improved BPM detection circuit.
? Mic input: On XLR connector; gain control and 2-band EQ control available: routable straight to soundcard.
? Power supply: High performance internal switch-mode supply
? RIAA: for THREE turntables (four via internal jumper link)
? Dual Rail VCA Cross Fader

USB 2.0 SOUNDCARD:
? Totally new 20 channel 96 kHz / 24-bit soundcard connecting via wide-bandwidth USB 2.0 (480Mbit/s)
? Uses 24 bit stereo Analogue to Digital converters and Digital to Analogue converters (not lower spec CODECs)
? 10 in / 10 out (4 stereo in optical in / 4 stereo out optical out)
? No software configuration utility ? all front panel switched.
? Soundcard inputs fed from Mic, FX2, FX1, Main Mix or from stereo channels 1-4
? Sends - mix, FX, or individual analogue channels may be routed to PC or digital outputs.
? New record output ? FX2 RCA outputs can be switched to a RCA record output.
? Drivers available for PC and Mac

MIDI CONTROLLER:
? NEW! 2 separate layers of MIDI controllers with control pickup algorithm ensuring a smooth transition between layers.
? 227 MIDI control messages available from 105 separate MIDI controls
? 8 x 60mm linear faders
? 16 x detented rotary pots
? 10 rotary encoders,
? 50 switches,
? 2 custom jog wheels with 4 micro switches
? 8 illuminated push switches
? Xone:4D is compatible with any PC software that has MIDI assignable functions: for instance, lighting controller or visual effects programs

The Xone:4D ships with mains leads, USB cable, user guide, spare knobs & faders and A&H stickers.
