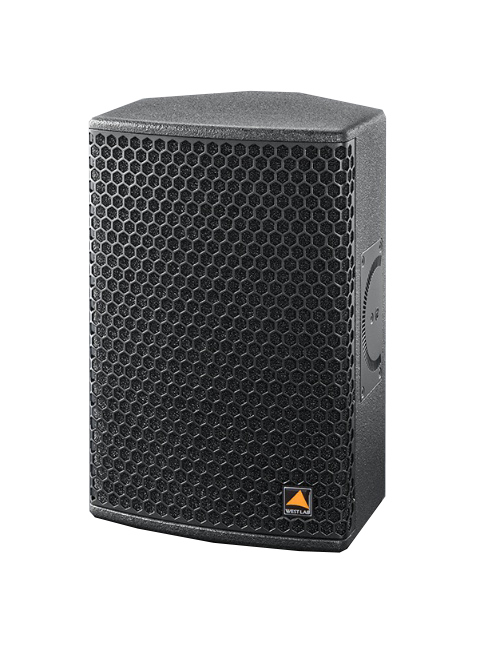

LABRAT Series



LABRAT six p	LABRAT eight p	LABRAT twelve p
6" Coaxial Top Passive Loudspeaker / 16Ω / 130W RMS, 200W Program, 400W Peak / X-Over / Max SPL: 117dB / 100° x 100°(수평 x 수직) / Multi Purpose Shape	8" Coaxial Top Passive Loudspeaker / 16Ω / 200W RMS, 400W Program, 800W Peak / X-Over / Max SPL: 121dB / 100° x 100°(수평 x 수직) / Multi Purpose Shape	12" Coaxial Top Passive Loudspeaker / 8Ω / 500W RMS, 1,000W Program, 2,000W Peak / X-Over Max SPL: 130dB / 90° x 90°(수평 x 수직) / Multi Purpose Shape

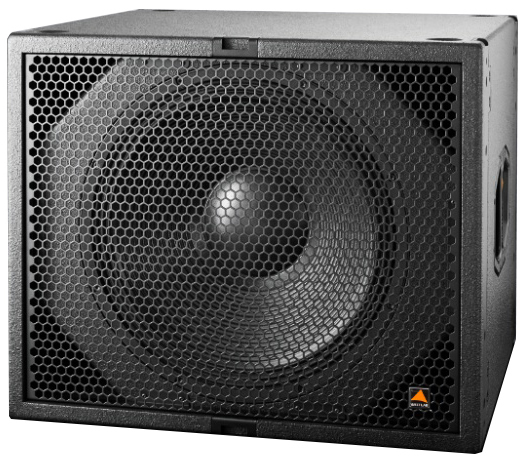

LABSUB Series

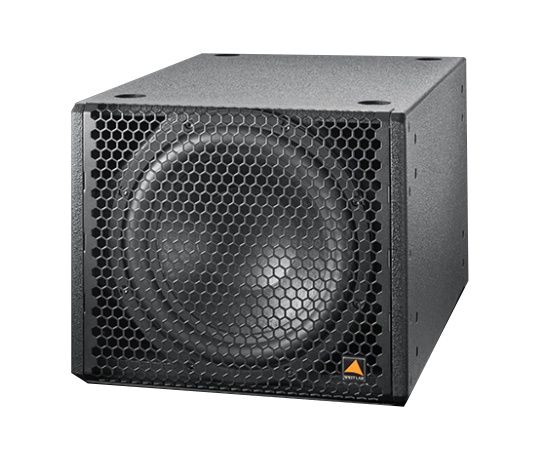

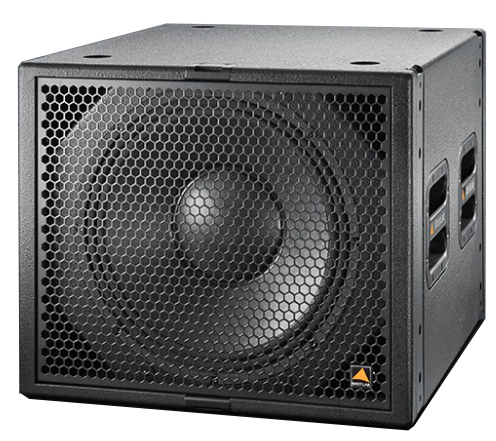

LABSUB twelve p	LABSUB fifteen p	LABSUB eighteen p	LABSUB twofifteen p

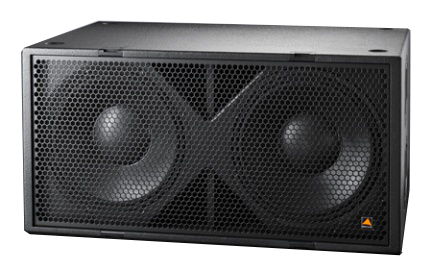

12" Passive Subwoofer / 8Ω / 600W RMS, 1,000W Program, 2,000W Peak / Max SPL: 128dB	15" Passive Subwoofer / 8Ω / 1,250W RMS, 2,000W Program, 4,000W Peak / Max SPL: 133dB	18" Passive Subwoofer / 8Ω / 1,250W RMS, 2,000W Program, 4,000W Peak / Max SPL: 134dB	2 x 15" Passive Subwoofer / 4Ω / 2,500W RMS, 4,000W Program, 8,000W Peak / Max SPL: 139dB

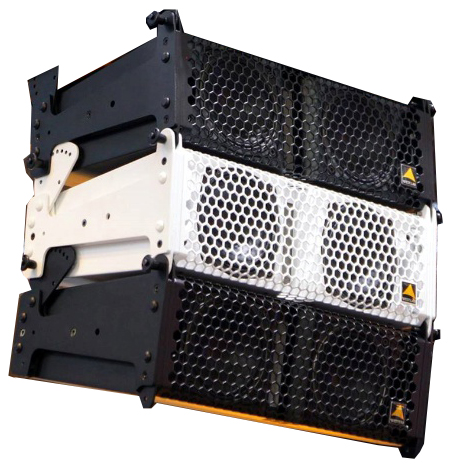

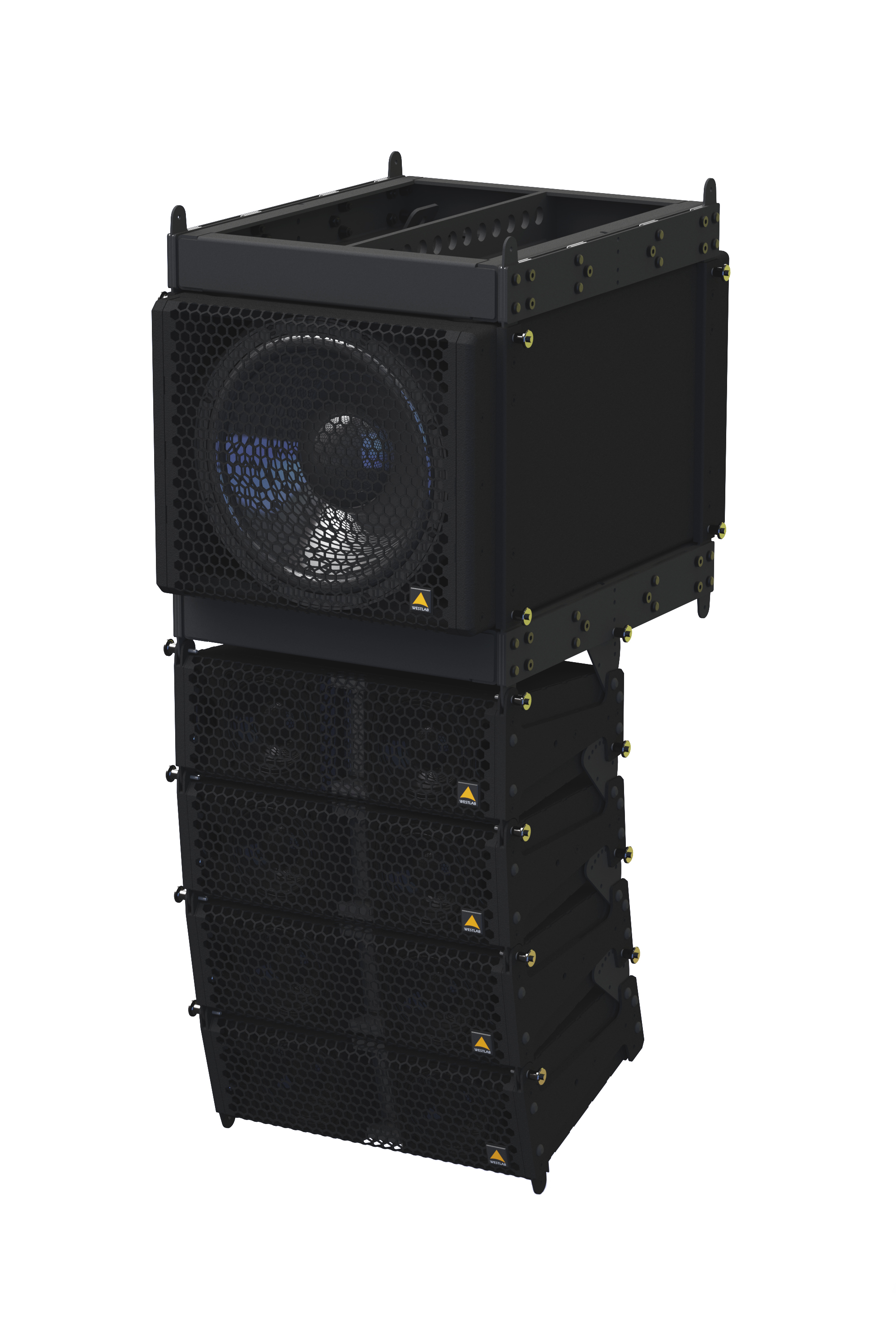

LABLINE Series

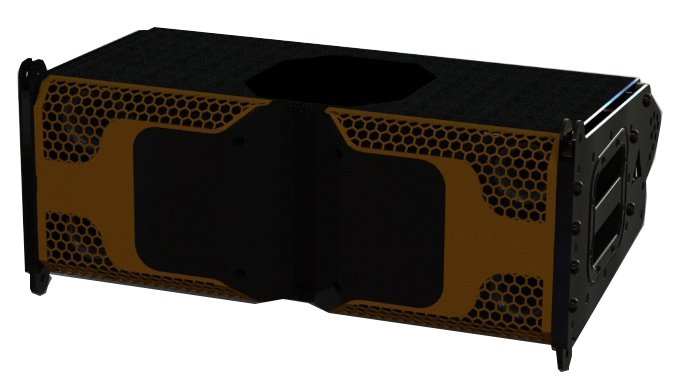

LABLINE twofive	LABLINE twosixfive	LABLINE twosixfive FR	LABLINE twoeight

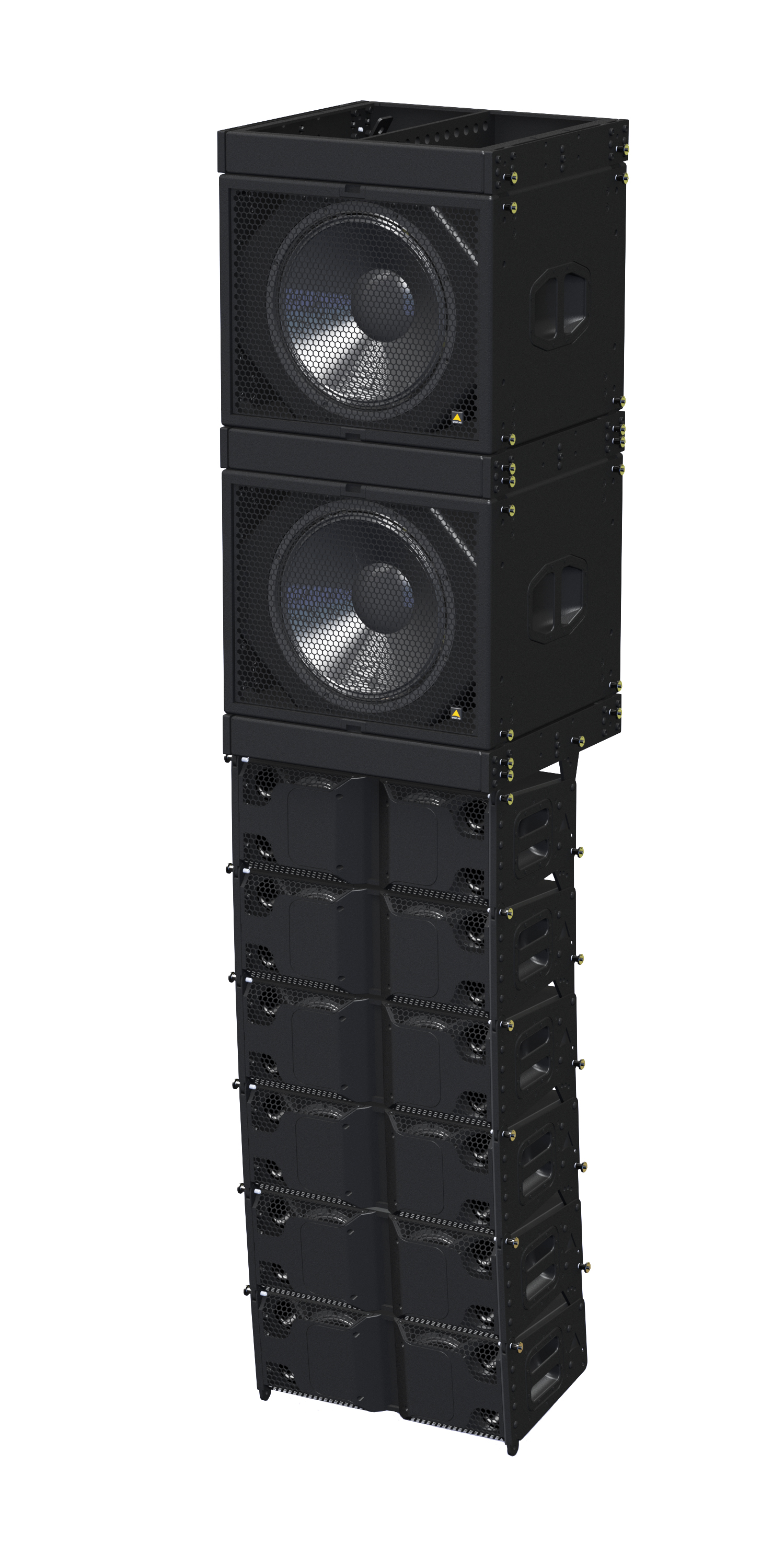

2 x 5" Planar Driver / Bi-Amping System / Compact Genuine Array Loudspeaker / DSP Extern / LF: 260W RMS, 1,000W Peak / HF: 800W RMS, 320W Peak / Max SPL: 130dB / 100˚ x 10˚ (수평 x 수직)	2 x 6.5" LF & 1 " HF driver Hybrid Horn / Bi-Amping System / DSP Extern / Hybrid / 750W RMS, 1,150W Peak / Max SPL: 133dB / 90° x 40° (수평 x 수직)	2 x 6.5" LF & 1 " HF driver Hybrid Horn / Full-Range / X-Over Inside / Hybrid / 750W RMS, 1,150W Peak / Max SPL: 133dB / 90° x 40° (수평 x 수직)	2 x 8" TT, MT & HT 8" Coaxial Planar Driver / Bi-Amping System / Genuine Array / DSP Extern / 2,100W RMS, 2,450W Peak / Max SPL: 139dB / 100° x 10° (수평 x 수직)

LABCON Series



LABCON	LABCON PRO

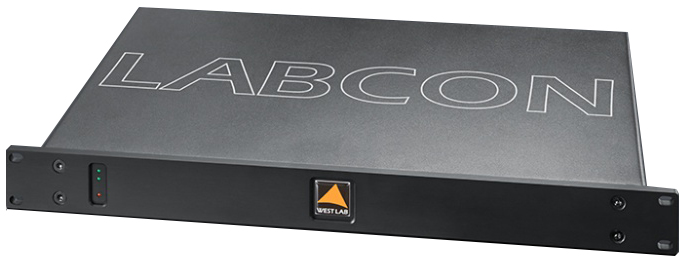

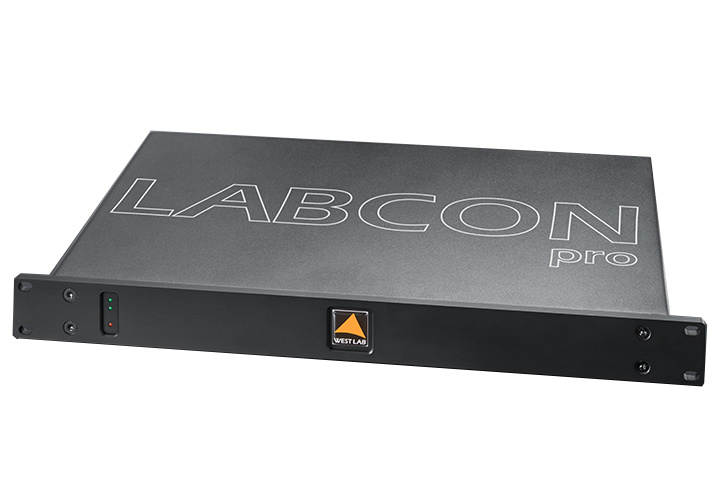

DSP-Controller / 2 or 4 Input, 4Output / 96kHz, 48Bit Converting / AES/EBU Digital In & Out / 8 Analog Output / Ethernet & RS232 Interface	DSP-Controller / 2 or 4 Input, 8Output / 96kHz, 48Bit Converting / AES/EBU Digital In & Out / 8 Analog Output / Ethernet & RS232 Interface

ACCESSORIES



Mounting Bracket	Vertical Adapter	Pole Adapter	Flying Frame

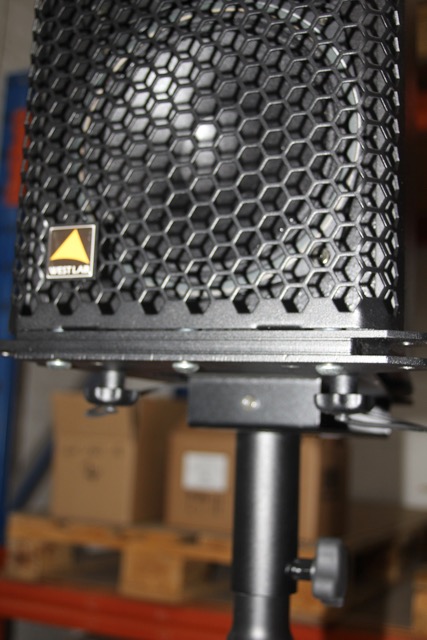

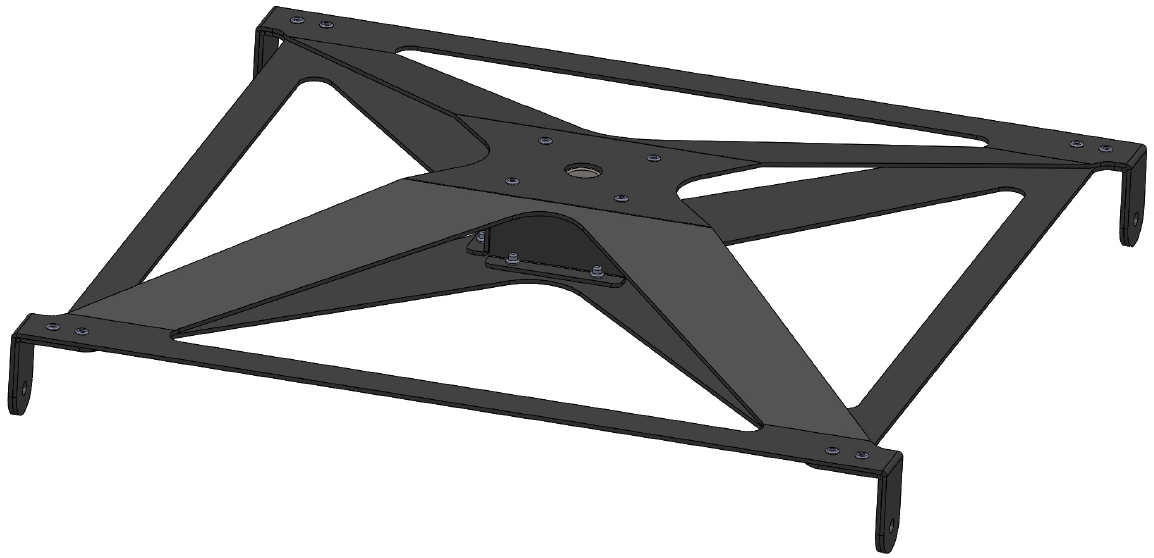

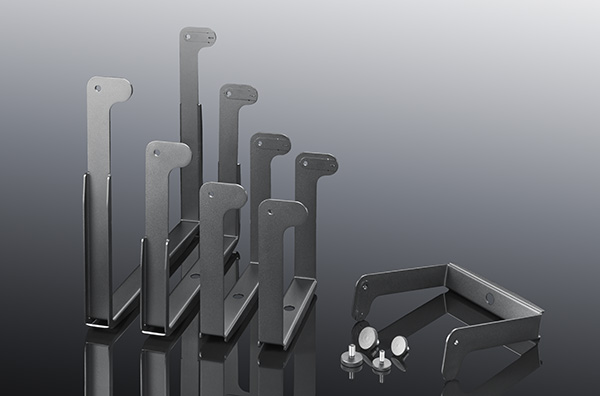

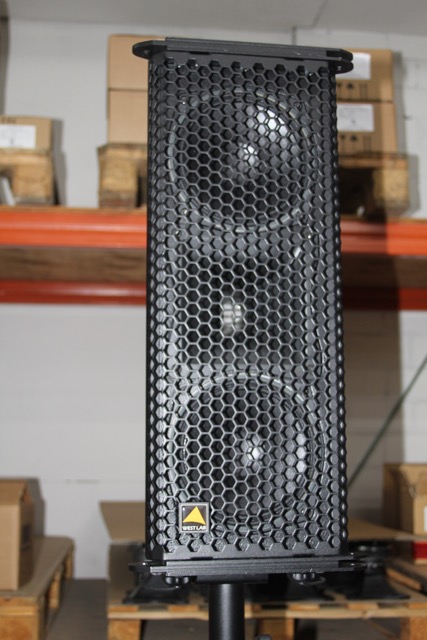

Wall Mount or Ceilling Mount Bracket / 2˚ Steps	Vertical Adapter with Hollow for LABLINE twosixfive	Pole Adapter for LABSUB Series	DIN/ISO Flying Frame

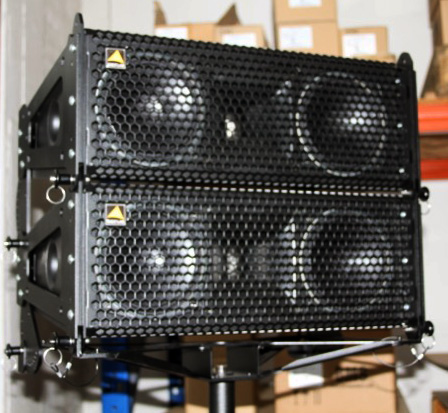

Cover	Flight Case	Sandwich Bracket

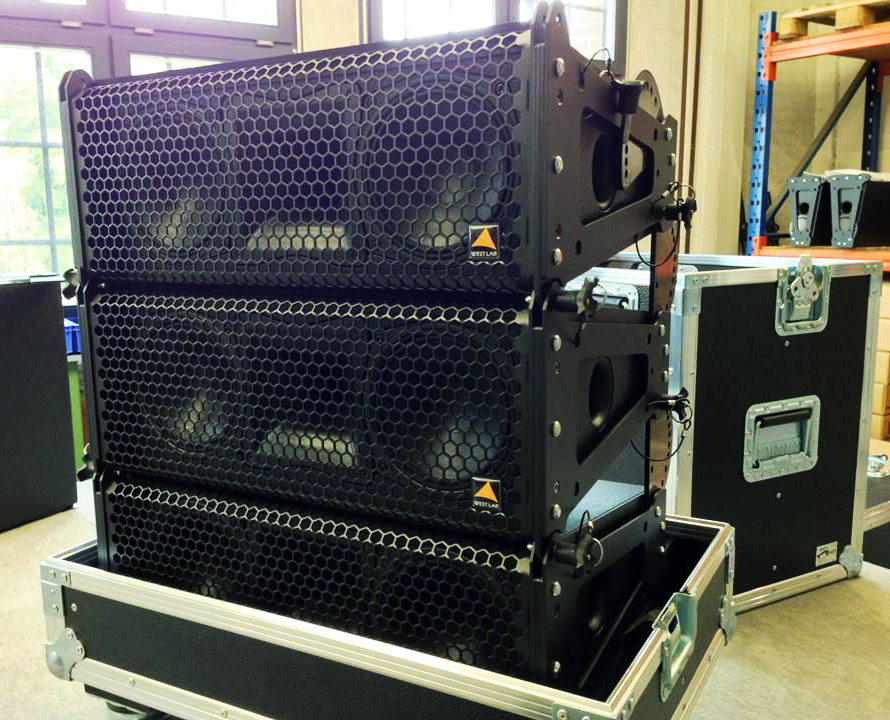

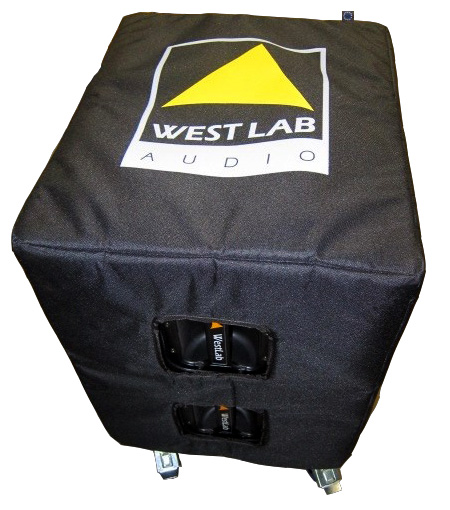

Cordura 10mm Premium Cover with Prints	Flight Case for 3 of LABLINE twosixfive	Bracket for 2-3 pcs. of LABLINE twosixfive
